Unimog

Mercedes-Benz Unimog U423 mit Abrollsystem und Mulde

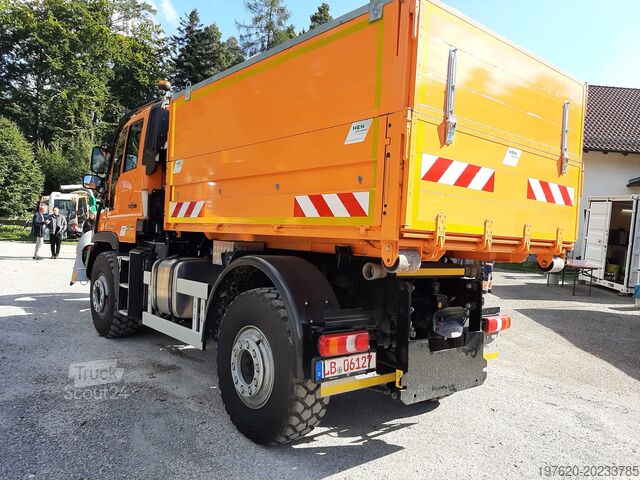

Unimog U423 Demonstrator including HEN hook-lift system and universal skip with board extension.

Vehicle special equipment:

A1W Differential lock on front axle
AA2 Extended stop screw
AZ1 Axle ratio i = 6.377
B30 Anti-roll bar
B5B Trailer brake, dual-line
C1R Wheelbase 3,600 mm
C7H Side protection device
CA4 Rear mounting brackets
CA9 Mounting brackets for heavy equipment/crane superstructures
CD6 Mounting parts between the axles
CP3 Front mounting plate DIN76060, type B, size 3
D6F Air conditioning
DB5 Double passenger seat
DF3 Air-suspended comfort seat with seat heating, driver
DG1 Additional left stalk switch
DH3 Universal holder, for control unit
E33 Battery master switch at battery box
E40 ABS trailer socket 24V, 7-pin / 5-pin
E42 Trailer socket 12V, 13-pin
Dcsdpjxltv Hjfx Ah Non
E45 Front socket 24V, 7-pin
ED2 Continuous power sockets 12V (C3), 12V and 24V center contacts
ED6 On-board socket 24V/25A in cab, with C3 signal
EF3 Rear view camera
EM5 Monitor for camera system
ES6 Universal electrical interface according to EN16330
F5L External sun visor, transparent
F6B Windscreen, clear, heated
G20 Transfer case with work mode
G48 Automatic Shift (EAS)
GM2 Transmission oil cooler, oil/air
H55 Hydraulic connector, rear, 4-way, cell 1+2
H58 Pressure line rear, 2nd hydraulic circuit
H59 Separate rear return line
HE1 Hydraulics for tipping device
HJ1 Hydraulic oil level warning display
HN8 Hydraulic system, dual-circuit, 4-cell, full proportional, snow plough relief
J1C Multifunction display, 12.7 cm, with video function
J5S Radio with USB and Bluetooth
L1H Fog lights, halogen
L3Z Headlamp cleaning system
L60 Entry lights in cab access area
LA3 Bi-xenon headlights, LED daytime running lights
LB6 LED warning beacons, yellow, left and right, with tripod
LD4 Additional LED high beams on roof bracket
LE4 Work lights, cab rear wall, upper, LED
LE5 Additional lights, height-adjustable, A-pillar, LED
M1K Engine OM934, R4, 5.1 l, 170 kW (231 hp), 900 Nm
M4X Engine variant Euro VI, E
M5V High performance engine brake
N08 Engine PTO incl. front PTO
N09 PTO speed limitation
OP2 Lighting package
Q94 Tow coupling, large jaw, ring type, 38.5 mm pin
QA1 Increased towing capacity, gross trailer load up to max. 20 t
TS3 Weight variant 14.0 t (7.1/8.0)

HEN Hook-lift system with skip:

Demonstrator year 2023
HEN hook-lift container system
incl. remote control / operator console
Higher-quality multi-layer coating in MB 9124 black
Superstructure for Unimog U400 chassis
with a permissible total weight of 14,000 kg;
Max. lifting capacity at the hook 6,000 kg
Single-arm hooklift system
with articulated arm and modified hook height of 1,570 mm
Container frame width per DIN 30722-3
Max. container pull-on length 3,200 mm (container length)
Hydraulic supply via vehicle hydraulics

Demonstration skip Unimog year 2023
No. 21044
incl. FAC-U700-Z023S board side extensions 600 mm
incl. FAC-U700-Z930S pair of lashing eyes
recessed in floor plate, 8 pcs
incl. front mounted heavy-duty lashing eyes, 4 pcs
Skip shows signs of use
Universal light material container 32/21 ALU 600 System Strobach
amended hook height to 1,570 mm
Suitable for light bulk materials, leaves and cuttings
Machinery and equipment transport
Dimensions:
3,200 mm x 2,100 mm x 600 mm

Viewing and test drive available by appointment only.

All information subject to change and errors excepted.

New TÜV (inspection).
