SCHORR Elektro Hochhubwagen 1200kg 2,5m - 3,5m

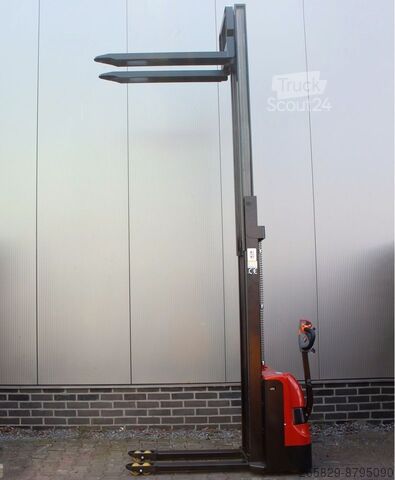

SCHORR Electric High-Lift Pallet Truck 1200kg Load Capacity

- Various lift height options available (2500mm, 3000mm & 3500mm)
- Low-maintenance and easy to operate
- Includes 24V batteries and charging station
- 1.2t load capacity
- Excellent price-performance ratio
- BRAND NEW!

Prices depending on lift height / version:
- 2500mm lift height: €2,436.00
- 3000mm lift height: €2,819.00
- 3500mm lift height: €2,839.50

The SCHORR electric high-lift pallet trucks offer outstanding value for money. The off-centre drive unit allows for a small turning radius with excellent all-round visibility. Each model is equipped with a multifunction tiller displaying the current battery status and can be started via ignition key.

The tiller can be operated ambidextrously and also features a creep mode. The pallet truck design is both robust and service-friendly; impact-prone areas are fitted with flexible plastic. The emergency stop button is centrally positioned and thus easily accessible at all times.

As standard, the trucks are equipped with tandem load rollers that ensure smooth and quiet travel even on uneven surfaces such as cobblestones.

Technical Data

Manufacturer (Short designation): SCHORR
Manufacturer model designation: RR12HHE
Load capacity: 1.2t
Model: 250E // 300E // 350E
Own weight incl. batteries: 453kg // 465kg // 477kg
Drive: Electric
Tyres: Polyurethane

Basic Dimensions

Overall length: 1755mm
Overall width: 795mm
Length incl. fork backrest: 605mm
Lift: 2500mm // 3000mm // 3500mm
Mast height retracted: 1744mm // 1994mm // 2244mm
Mast height extended: 2924mm // 3424mm // 3924mm
Fork dimensions DIN ISO 2331: 60mm x 160mm x 1150mm
Fork outside width: 570mm / 650mm / 695mm
Aisle width with pallet: 800 x 1200 lengthways 2068mm
Turning radius: 1366mm

Speed

Travel speed with/without load: 4.0km/h / 4.2km/h
Lifting speed with/without load: 0.09m/s / 0.14m/s
Lowering speed with/without load: 0.11m/s / 0.1m/s
Max. gradient with/without load: 6% / 8%

Whether you prefer delivery of the high-lift pallet truck, or would like to collect it from us on-site in 48465 Schüttorf, we have the ideal solution for every need. Feel free to contact us.

Lsdpfx Agjkpp Twogsak
To make collections and viewings as convenient as possible for you, please note that these are only available by prior telephone appointment.

Interested in financing or leasing the equipment? No problem! We also offer attractive financing options. Simply contact us and we will be happy to advise you on the various possibilities. We look forward to your inquiry!

The SCHORR team is happy to answer any further questions you may have regarding our pallet trucks. Our competent staff are available by phone or email. We look forward to hearing from you and assisting you with your purchase.
