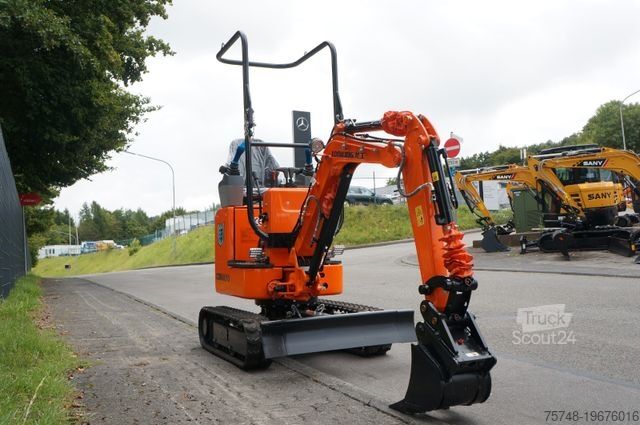

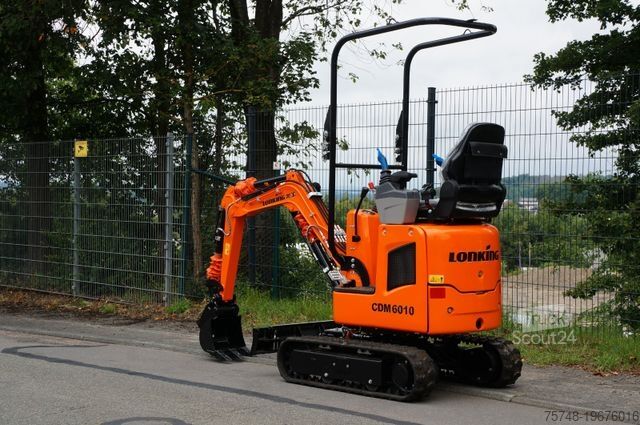

Minibagger LONKING CDM6010 mit YANMAR Diesel

immediately available

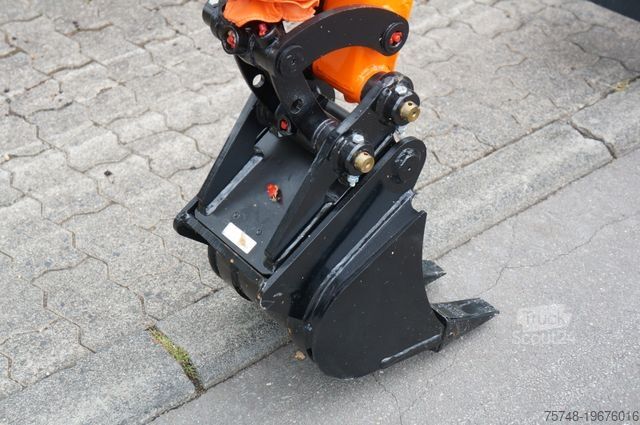

INCLUDES MS01 quick coupler
INCLUDES bucket package (2 digging buckets + 1 hydraulic grading bucket)

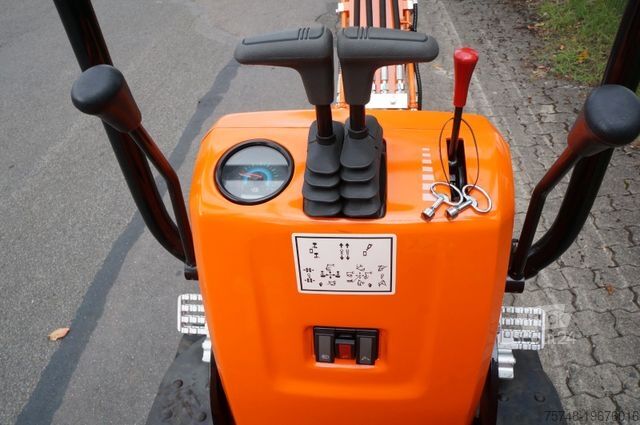

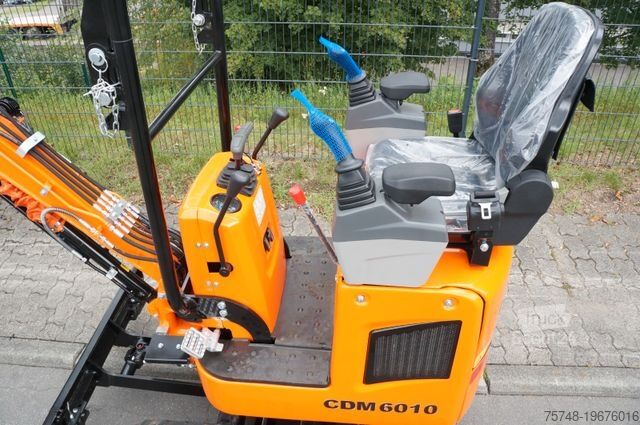

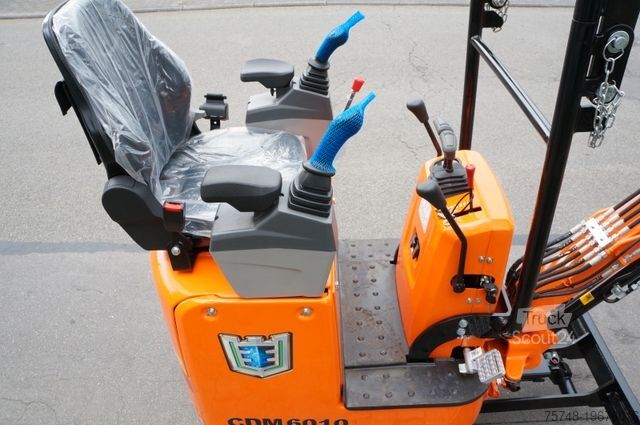

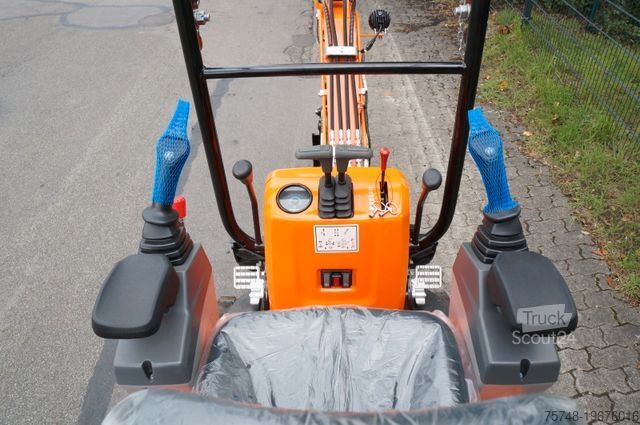

Joystick control

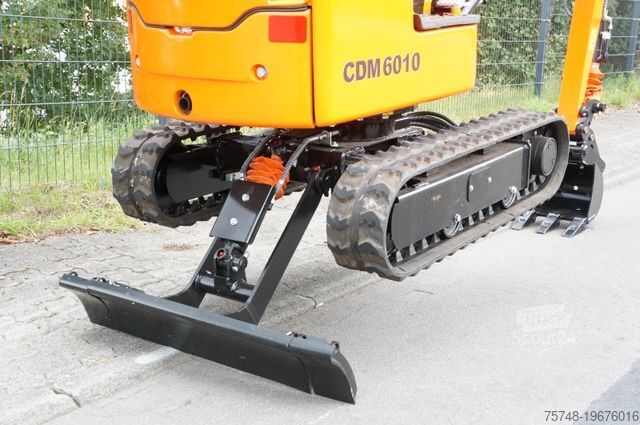

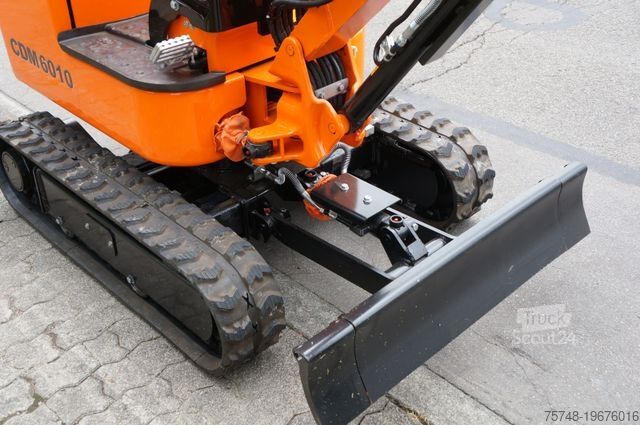

Adjustable undercarriage – travel width 75 / 100 cm
2 travel speeds

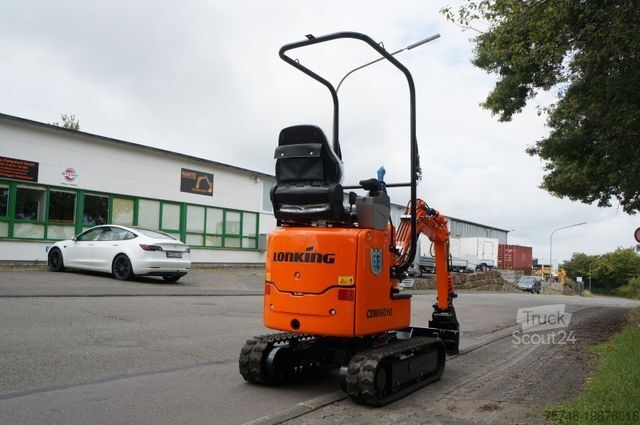

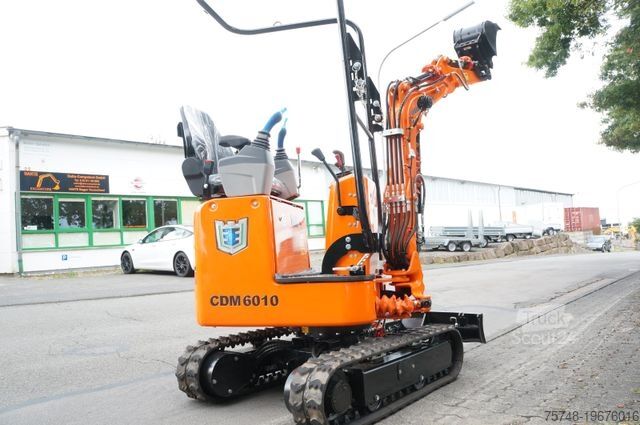

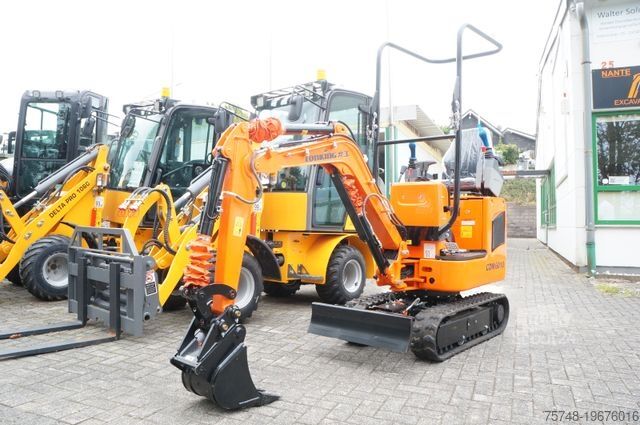

Lonking CDM6010
MAIN TECHNICAL DATA
Operating weight: 1010 kg
Engine power: 7.5 kW
Bucket capacity: 0.022 m³
Travel speed: 1.5 / 2.9 km/h

TECHNICAL SPECIFICATIONS

Name Data
General
Operating weight 1010 kg
Standard bucket capacity 0.022 m³
Standard bucket width 320 mm
Max. travel speed 1.5 / 2.9 km/h
Max. swing speed 8.2 rpm
Gradeability 30°
Ground pressure 24.5 kPa
Boom swing angle (L/R) 73° / 53°
Max. traction force 10 kN

Engine
Engine manufacturer Yanmar
Engine model 2TNV70
Rated output 7.5 kW / 2400 rpm
Displacement 0.57 L
Fuel tank 9.4 L

Hydraulics
Max. pump capacity (total) 9.6 × 3 L/min
Max. working pressure 16 MPa
Max. control pressure 3.2 MPa
Max. digging force – arm 5.8 kN
Max. digging force – bucket 9.4 kN
Hydraulic tank 9.5 L

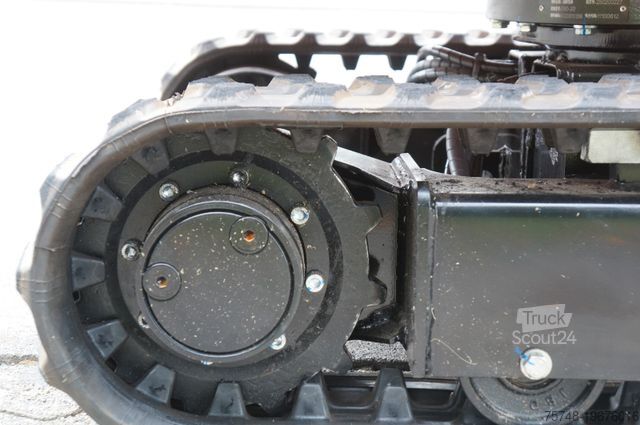

Undercarriage
Track width 180 mm
Track type rubber track
Carrier rollers 1 (per side)
Track rollers 2 (per side)

Electrical System
System voltage 12 V
Battery capacity 12 V, 36 Ah

PRODUCT FEATURES
High-performance Yanmar engine. Emission standard: EU Stage V. Proven reliability in compact machines, features low noise emission, low vibration, and easy maintenance of all major components.

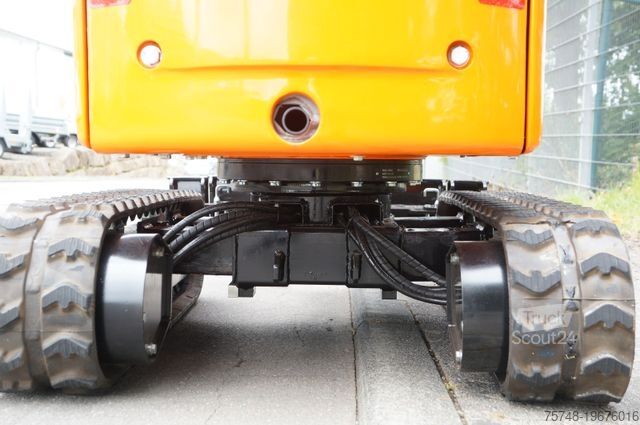

Telescopic undercarriage, controlled by a simple joystick – can be retracted to 750 mm for tight spaces or extended to 1000 mm for increased stability (15% enhancement).

Hydraulic control system specifically designed for the working equipment – provides increased accuracy and smooth operation.

3 lifting points for direct lifting - simplify loading and unloading with enhanced safety and convenience.

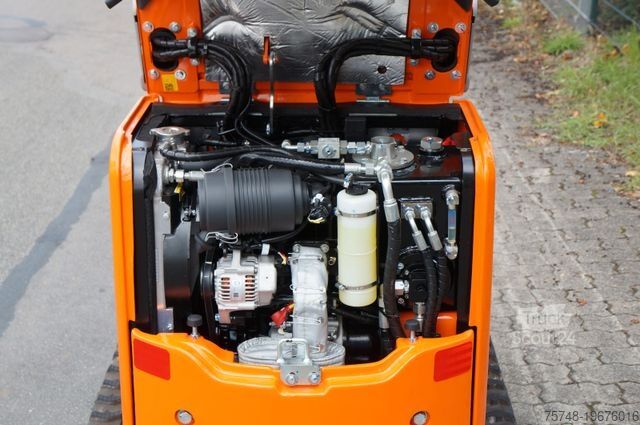

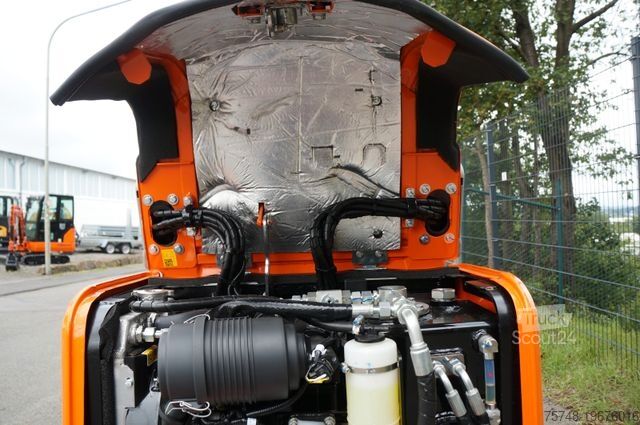

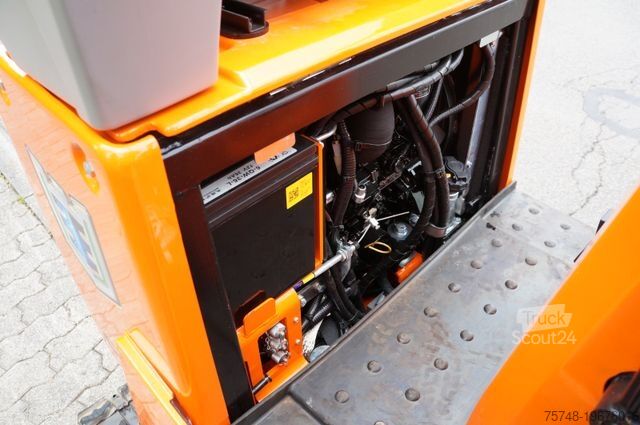

Tiltable engine hood – allows easy access to most engine components for maintenance and repair.

STANDARD EQUIPMENT

TOPS canopy
Seat belt
Telescopic undercarriage
Hydraulic control lever
Foldable boom
Dcedpsw Er Nuofx Amxjk
Warning light
Central external pressure gauge

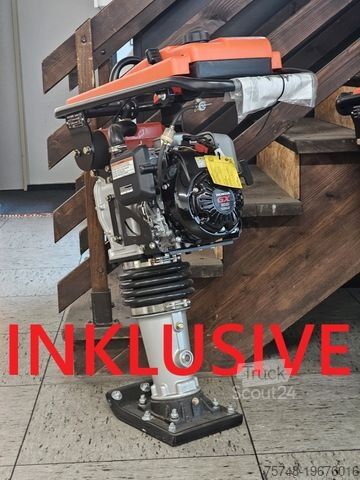

Tamping rammer included
Engine: Honda GX100, 1-cylinder, 4-stroke petrol
Operating weight: 58 kg
Shoe stroke: 40-85 mm
Compaction force: 14 kN
Base plate: 230x285 mm
