Tanker yarı römork

LAG 20 FT ADR Chassis & 35m³ SWAP L4BH / MIETE

Container Chassis 20FT:

Fifth wheel height: 1180 mm (unladen, air-suspended tractor unit)
Suitable for the transport of containers:
- 1 x 20FT ISO
- 1 x 20FT (7150) Swap body
- 1 x 20FT (7450) Swap body
- 1 x 20FT (7820) Swap body

Three-axle unit SAF INTRA DISC PLUS SBS2220, with disc brakes (large discs 430 mm).
INTRA air suspension with steel suspension brackets.
The axles are air-suspended, with axle 1 as a lift axle, controlled automatically via EBS.
6 aluminium rims, size 22.5 x 11.75, brand TIA, polished finish, ET 120 mm.
WABCO EBS-E braking system, type 2S/2M (ABS on 1 axle), with RSS system (roll stability) and pneumatic hand parking brake on 2 axles, compliant with regulations.
Tyre pressure monitoring system WABCO OptiTire (TPMS).
Landing gears JOST MODUL B, version with plates and compensating feet (S), load capacity 2x12,000 kg, mechanically operated.
1 PVC toolbox (1,040x490x480 mm), mounted on the right.
Stainless steel drip tray with removable aluminium cover plate.
On both sides of the drip tray, left and right, a working platform covered with aluminium safety grating.
Left and right, behind the 20FT connection above the third axle, an aluminium walkway.
Between the longitudinal beams: 2 PE hose pipes, @ 160 mm, length 6,200 mm, with PE end caps at the front.
At the rear, the hose pipes are equipped with separate, lockable stainless steel caps (dia. 160 mm).
Rear: 1 foldable ADR sign.
Vehicle specification according to ADR: EX/II + EX/III + FL + AT
Bodpfx Asyqiy Togwjld

Container:
Type: CIMC Longitudinal Swap Body Tank (CLS)
Capacity: 35,000 liters
Tare weight: 4,130 kg
Operating pressure (max.): 3.0 bar
Test pressure: 4.5 bar
Temperature range: –40°C to +130°C
Approvals: IMO Type 4, RID/ADR-L4BH, UIC, TIR, CSC
Shell: 1.4402 (316L), 3.2 mm, 2B finish
Ends: 1.4402 (316L), 4.2 mm, hot rolled, polished
Baffle plates: 4× vertical, CVC-shaped, corrugated, welded to 70%
Internal finish: degreased, pickled, passivated, neutralized
Ladder: stainless steel, rear right, anti-theft
Walkway: aluminium, non-slip, 475 mm, with cross steps
Handrail: foldable, telescopic, anti-theft
Stacking: up to triple stack
Manhole: Ø500 mm, 316 stainless steel, 8-bolt, EPDM/PTFE
Inspection openings: 3× Ø300 mm, 316 stainless steel, 4-bolt

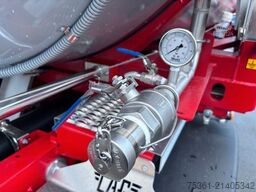

Safety valve: 3", stainless steel, 3.75 bar, without flame arrester, with rupture disc & gauge
Air line: 1.5", with ball, safety & non-return valves, gauge operable from below
Vacuum valve: 2" BSP, –0.21 bar
Bottom valve: 3", with cable remote closure
Steam heating: 8 longitudinal runs, 1" BSP, 3 bar
Thermometer: analogue, –40°C to +160°C
Insulation:
- 50 mm mineral wool (tank & ends)
- PU foam under stainless steel straps
Cladding:
- Shell: 4× 1.8 mm GRP panels
Marking: 3× holders for Edgar Weber flip boards, 1× Kemmler holder
