FAYMONVILLE
Küçük ilan
Dortmund
2.568 km
Alçak yükleyici yarı römork
FaymonvilleMAX Trailer 4-Achs-Jumbo-Semi mit Plane
Ara
Durumu: yeni, azami yük ağırlığı: 38.100 kg, toplam ağırlık: 50.000 kg, dingil konfigürasyonu: 3 aks, yükleme alanı uzunluğu: 13.100 mm, yükleme alanı genişliği: 2.480 mm, yükleme alanı yüksekliği: 760 mm, süspansiyon: hava, lastik boyutu: 205/65 R17.5 3PMSF, renk: gri, Donanım: ABS, Gooseneck:
Gooseneck with rear chamfer approx. 750 mm x 10°
3 pairs of lashing rings
30 mm thick hardwood flooring
Loading Platform:
5 pairs of fold-out lashing rings on the outside
3 pairs of fold-out lashing rings on the outside
1 pair of horizontal lashing rings at the front end of the platform
Cut-outs in the outer frame of the loading platform for attaching tension straps
Approx. 48 mm thick hardwood flooring, checker plate flooring above the axles
Landing Gears:
JOST landing legs with 2-speed gearbox, lifting capacity 24 t
Axles and Tyres:
BPW axles, two fixed axles, two steered trailing axles, air suspension, drum brakes, raise/lower function
Trailing steering axles with electro-magnetic reverse lock, activated via reverse gear or manually
Axle tool
Tyres 205/65 R17.5 3PMSF
Brake System:
Gjdpfetphtmex Afveua
WABCO brake system according to EU regulations, with EBS-E
Steel Construction:
High-strength fine-grained steel construction
Steel Grades:
S355J2+N/S355MC
S690QL/S700MC
Electrical Equipment:
Electrical system according to EU regulations, lighting: 24 Volt ASPÖCK-NORDIK
ASPÖCK-UNIBOX at the front connection panel, with 24N, 24S & 15 pin sockets
Connections according to ISO
Paintwork:
First-class and durable corrosion protection of the standard shot-blasted welded frame, ensured by 2-component zinc-dust primer
Premium 2-component topcoat, single colour in MB 7350 Novagrau
No metallic finish possible
Rear section metallized and painted RAL 9010
Accessories Included:
1 spare wheel 205/65 R 17.5
TPMS tyre pressure monitoring system according to ECE R 141
Galvanized front connection bar with yellow-red air couplings
4 chocks with holder at the front wall
Mounting at rear of gooseneck for ALU loading ramps
Galvanized folding supports under the loading platform’s rear chamfer
Holder for a warning beacon at the rear of the trailer
Height-adjustable tarpaulin superstructure
Galvanized front wall with tensioning mechanism for sliding curtains
Height-adjustable by approx. 400 mm
Roof brand "EDSCHA" sliding forward on ALU roof support profiles, screwed front and rear walls
On platform: 3 pairs of adjustable stanchions
Rear of superstructure can be hydraulically widened left and right by approx. 750 mm
Sliding roof with upward swinging portal beam
Sliding tarpaulin with 700 mm length reserve, securing straps at approx. 600 mm intervals
Height upper edge of superstructure approx. 3,960 mm
Driving with open sliding roof is not permitted and will damage the tarpaulin
Suspension rail for ALU loading ramps at the rear of the vehicle
At the gooseneck and at the left and right rear panel: each with a bracket for warning boards including socket
Mudflap at the rear of the trailer
European reflector boards at the rear of the trailer
7 pairs of stanchion pockets for 100 x 50 mm plug-in stanchions in the outer frame of the loading platform
Lift axle on the front axle with TEBS E control, depending on current axle load and loading status
Rear of superstructure with closed ALU wing doors
Anti-slip sand finish painted on checker plates on gooseneck and platform
Central lubrication system BEKAMAX, standard grease NLGI-2, removable protective cover for pump
80 km/h speed sticker at rear and on both sides
Load gauge for axle load determination including load chart
Küçük ilan
Dortmund
2.568 km
Alçak yükleyici yarı römork
FaymonvilleMAX Trailer 8-(3+5)-Achs-Tiefbett-Kombi.
Ara
Durumu: yeni, boş ağırlık: 34.500 kg, azami yük ağırlığı: 106.700 kg, toplam ağırlık: 141.200 kg, dingil konfigürasyonu: 3 aks, yükleme alanı uzunluğu: 7.150 mm, yükleme alanı genişliği: 2.850 mm, yükleme alanı yüksekliği: 580 mm, lastik boyutu: 285/70 R19.5, renk: gri, işletme ağırlığı: 34.500 kg, Donanım: ABS, Gooseneck:
- Hydraulic gooseneck, height-adjustable and detachable
- Length approx. 3,650 mm
- Numerous lashing points
- For tractor units: 6x4 or 8x4
3-Axle Compact Front Bogie:
- Hook mounts at the front and rear
- Bogie length x width: approx. 3,560 mm x 2,850 mm
- Numerous lashing points
Excavator Deck "BB-A":
- Telescopic excavator deck "BB-A" with drive-over bridge hooks at the front and bolt-eye coupling at the rear
- Length x base width: approx. 7,150 mm x 2,850 mm
- Beam height x width: approx. 430 mm x 1,350 mm
- Loading height 580 mm with ground clearance of 150 mm
- 5 pairs of drop-forged lashing rings (LC 10,600 daN)
- 4 pairs of M30 threaded inserts on the inner beam for mounting bolt-on rings
5-Axle Rear Bogie:
- Mechanical bolt-eye coupling for mounting a lowbed at the front, rear cross member at the back
- Bogie length x width: approx. 6,840 mm x 2,850 mm
- Numerous lashing points
Pendulum Axles and Tires (Front and Rear Bogies):
- "PENDEL-AXLE", all axles with hydromechanical forced steering
- Hose rupture valve on equalizing cylinder with automatic reset
- Hydraulic cylinders with shut-off valves and safety lock pins for securing in raised position
- Axles finished with two coats of 2K paint, single-color MB 7350 Novagrau
- Technical axle load: 14,640 kg (62 km/h)
- Hydraulic axle compensation
- Axle tools
- Tires: 285/70 R19.5
Remote Steering:
- Remote steering operational from front and rear via cable remote control with push-buttons, including axle tracking monitoring
- Socket for operating the remote steering on the gooseneck
- Cable remote control with push-buttons and axle tracking monitoring included
Accessories Included:
- Galvanized front connector bar with yellow-red air couplings
- Steel front wall approx. 400 mm high
- 4 wheel chocks with brackets
Gjdpfx Afswhywfsveua
- 2 spare wheels 285/70 R19.5
- 3.5" king pin
- Gantry with winch for spare wheel on the front of the gooseneck
- Truck hydraulic connection with flow regulator (40 l/min), including gantry for suspending supply lines; tractor tank must have minimum capacity of 80 liters, complete with couplings
- White reflective tape to EU specs on the sides and extensions, red at the rear
- Plug-in ALU side and rear panels on the gooseneck, approx. 400 mm high, anodized
- Gooseneck operating lever protected by a folding cover
- Separate air connection with air gun on the gooseneck
- Central lubrication system BEKAMAX with multipurpose grease NLGI-2, 1x at the gooseneck, 1x at the 3-axle bogie, 1x at the 5-axle bogie
- Variomax tool kit
- Multi-couplings for hydraulics in the area of the lowbed hook mounts
- Front bogie with separate air connection for pneumatic tools
- Thread inserts (ø 40 mm) every approx. 500 mm on the external upper flange of the excavator deck for bolt-on rings
- Foldable extensions with steel decks, adjustable in width from approx. 2,850 mm to 3,250 mm
- Steel decks with approx. 12 mm thick rubber surface
- Two INOX toolboxes 855 x 340 x 390 mm
- Wireless remote control for remote steering in addition to cable control
- Slip-resistant sanded surface coating
- Single-cylinder Hatz diesel engine (Silent Pack) with electric starter and starter battery
Küçük ilan
Dortmund
2.568 km
Alçak yükleyici
FaymonvilleMAX Trailer 2-Achs-Tiefbett mit Pendelachsen
Ara
Durumu: yeni, boş ağırlık: 12.900 kg, azami yük ağırlığı: 34.100 kg, toplam ağırlık: 47.000 kg, dingil konfigürasyonu: 2 dingil, yükleme alanı uzunluğu: 6.850 mm, yükleme alanı genişliği: 2.540 mm, yükleme alanı yüksekliği: 350 mm, süspansiyon: diğer, lastik boyutu: 245/70 R 17,5, renk: gri, işletme ağırlığı: 12.900 kg, Donanım: ABS, Gooseneck:
- Gooseneck in SNT design for optimized loading area length, approx. 3,750 mm long
- Gooseneck hydraulically height-adjustable and detachable
- Technical fifth wheel load: 23,000 kg
- Suitable for tractor units: 4 x 2, 6 x 2, and 6 x 4
Gusdpfx Afohlz R Ssvoa
Loading Platform:
- Low bed with external beams in extendable "SUPER LOW" design, length approx. 6,850 mm
- Low bed with fixed hardwood floor approx. 40 mm thick and mechanical locking
Rear Chassis:
- Rear chassis with closed outer frame, checker plate covering and continuous prismatic excavator trough approx. 1,250/700 x 505 mm, open at the rear
- 2 pairs of lashing rings foldable outward
- 1 pair of lashing rings lying in the trough
- 2 pairs of stake pockets for plug-in stakes (100 x 50 mm) in the outer frame
Pendulum Axle and Tires:
- "PENDULUM AXLE", all axles hydromechanically forced-steered
- Hose rupture valve on axle compensation cylinder with automatic RESET function
- Hydraulic cylinders with shut-off valves and pre-insert to secure in lifted position
- Final coating of axles with 2 layers of single-color 2K paint, painted in "FAY-Grey-34-0260"
- Technical axle load: 12,000 kg
- Hydraulic axle compensation
- Tires 245/70 R17.5
- TPMS (Tire Pressure Monitoring System) compliant with ECE R 141
Accessories:
- Prepared for fitting of bolted container locking positions for 1x 20ft or 1x 40ft container on the external beams
- 2" kingpin
- Galvanized steel front wall approx. 400 mm high
- One spare wheel
- On the galvanized connection strip at the front: yellow-red air couplings
- 4 wheel chocks
- Remote steering front and rear operable via cable remote control with push buttons, including single-track monitoring of the axles
- Hydraulic connections from gooseneck to low bed with multi-coupling instead of threaded couplings
- Electro-hydraulic unit
- White reflector tape on sides, extension and rear, according to EU regulations
- European reflector panels (red-yellow) at the rear of the trailer
- At the gooseneck and rear panel, left and right, each with a bracket for warning signs including socket
- 6 pairs of threaded blocks between the lashing rings under the top chord on the outer beam for mounting of bolt-on RUD rings VLBG-4
- Removable ALU side walls and rear wall on the gooseneck, approx. 2,440 x 400 mm
- Rear galvanized plug-in posts are removable (body length approx. 2,560 mm)
- Gooseneck at the upper rear area closed with a removable cover
- 5 pairs of stake pockets for plug-in stakes 100 x 50 mm in the outer frame of the loading platform
- Fold-out extensions, approx. 230 mm per side
- 2 pairs of bolt-on RUD rings VLBG-4 M24 (LC 8,000 daN)
- 1 pair of steel ramps for bridging the low bed’s mounting hooks
- Sanded layer painted on the loading platform as an anti-slip coating
- Speed stickers 80 km/h on rear and both sides
- Rear chassis’ bucket recess at the rear closed with a plug-in plate
- Four warning panels extendable by approx. 400 mm, size approx. 423 x 423 mm
- Radio remote control for the rear steering, in addition to the cable remote control, with indicator lights on the receiver as single-track monitoring
- Central lubrication system with 2 BEKAMAX (Pico) pumps using standard grease NLGI-2
- Load gauge for determining axle loads
- HRM (High Resistance Metallisation) of the outer frame
- Complete steel construction shot-blasted, then all defined visible surfaces hot-finished in metallization with ZINACOR 850 (Zinc 85% - Alu 15%)
Küçük ilan
Dortmund
2.568 km
Alçak yükleyici
FaymonvilleMAX Trailer 4-Achs-Tele-Semi-Rampen-nlla
Ara
Durumu: yeni, azami yük ağırlığı: 49.000 kg, toplam ağırlık: 60.800 kg, dingil konfigürasyonu: 3 aks, yükleme alanı uzunluğu: 9.300 mm, yükleme alanı genişliği: 2.540 mm, yükleme alanı yüksekliği: 860 mm, süspansiyon: hava, lastik boyutu: 235/75 r 17.5, renk: gri, Donanım: ABS, Gooseneck:
- Gooseneck with front corners beveled at 45° and rear taper approx. 750 mm x 10°
- 3 pairs of lashing rings (LC 5,000 daN)
- 30 mm thick hardwood flooring
Extendable Loading Platform:
- Loading platform in extendable design with rear taper approx. 1,000 mm x 8°
- 5 pairs of outward folding lashing rings (LC 5,000 daN)
- 3 pairs of outward folding lashing rings (LC 10,000 daN)
- 1 pair of recessed lashing rings at the front of the loading platform (LC 10,000 daN)
- Cutouts in the outer frame of the loading platform for attaching tension belts (LC 2,000 daN)
- c. 48 mm thick hardwood flooring, over the axles with checker plate covering
Detachable Two-Part Ramps:
- One pair of galvanized, two-piece steel ramps, approx. 2,750 + 1,400 x 800 mm with approx. 48 mm thick hardwood covering
- Ramps with hydraulically folding ramp sections, hydraulic lifting unit and hydraulically adjustable
- Maximum load per pair: 40,000 kg
Landing Legs:
- JOST landing legs (mechanical) with 2-speed gearbox for 24t lifting capacity (50t test load)
Axles and Tyres:
- BPW axles, two rigid axles, two steering trailing axles, air suspension, with drum brakes, with raise/lower function
- The trailing steering axles can be locked electromagnetically via reverse gear or manually
- Axle tools
- Tyres: 235/75 R 17.5
Brake System:
- Brake system according to EU regulations with EBS-E (4S3M)
Steel Construction:
- Steel construction made of high-tensile fine-grained steels
- Steel grades:
- S355J2+N/S355MC (yield strength 355 MPa)
- S690QL/S700MC (yield strength 690 MPa)
Gedpjh Etf Rofx Afvsua
Paintwork:
- First-class and durable corrosion protection of the standard shot-blasted welded frame, ensured by a 2-component (2K) zinc dust primer
- High-quality 2-component (2K) top coat finish in single-colour Novagrau
Electrical System:
- Electrical system according to EU regulations, lighting 24 Volt ASPÖCK-NORDIK (ASS3)
- ASPÖCK-UNIBOX on the front terminal strip with 24N, 24S & 15-pin sockets
Accessories Included:
- 2" king pin
- One galvanized steel front wall approx. 400 mm high
- One spare wheel with holder in front of the headboard
- Yellow-red air couplings at the galvanized front terminal strip
- 4 chocks with holder at the front wall
- Mounting at the rear area of the gooseneck for ALU drive-on ramps
- Galvanized folding supports under the taper of the loading platform
- Bracket for a rotating beacon
- Cover plates to bridge the gap between ramps and loading platform
- White reflector tape to EU specification on the sides, red at rear and on extension
- Electro-hydraulic power pack
- On both sides of the gooseneck and ramps, mounting brackets for warning signs incl. socket outlet
- Ramp control valves installed on the right trailer side
- One mudguard at the rear of the trailer
- Instruction manual and description on USB stick
- ALU side walls and end wall, plug-in, on gooseneck approx. 2,440 x 400 mm
- The rear galvanized plug-in posts are removable (length of structure approx. 2,560 mm)
- 4 pairs of WADER container pockets in the loading platform for one 20ft, 2x 20ft or one 40ft container
- 7 pairs of stake pockets for 100 x 50 mm plug-in posts in the outer frame of the loading platform
- Extensions, galvanized, extendable by approx. 230 mm per side
- Lift axle on the front axle with control
- Square climbing rails 20 x 20 mm
- Central lubrication system BEKAMAX
- F
Küçük ilan
Dortmund
2.568 km
Alçak yükleyici yarı römork
FaymonvilleMAX Trailer 3-Achs-Tiefbett mit Pendelachsen
Ara
Durumu: yeni, boş ağırlık: 17.500 kg, azami yük ağırlığı: 43.500 kg, toplam ağırlık: 61.000 kg, dingil konfigürasyonu: 3 dingil, yükleme alanı uzunluğu: 7.550 mm, yükleme alanı genişliği: 2.750 mm, yükleme alanı yüksekliği: 400 mm, lastik boyutu: 245/70 R 17.5, renk: gri, Donanım: ABS, Gooseneck:
- Gooseneck in SNT design for optimizing the loading platform length, approx. 3,750 mm long
- Gooseneck hydraulically liftable/lowerable and removable
- For tractor units: 6x4 or 8x4
Lowbed:
- Lowbed with external beams, extendable version, “SUPER LOW” design, length approx. 7,550 mm
- Lowbed with fixed hardwood floor, approx. 40 mm thick, and mechanical locking
- Supply lines routed protected inside the extendable beams and automatically adjust to the respective lowbed length
Rear running gear:
- Rear running gear with closed outer frame, chequer plate covering, and continuous prism-shaped excavator recess, approx. 1,450/900 x 505 mm, open at rear
- 2 pairs of stake pockets for 100 x 50 mm plug-in posts in the outer frame
Axles and tyres:
- “PENDLE-AXLE”, all axles forced-steered by hydromechanics
- Burst protection valve on axle compensation cylinder with automatic RESET feature
- Hydraulic cylinders with shut-off valves and locking pins for securing in raised position
Guedpeh Hm Thofx Afvsa
- Technical axle load: 12,000 kg
- Hydraulic axle compensation
- 245/70 R 17.5 tyres / 3PMSF
Accessories included:
- Prepared for mounting attachable container positions for 1x 20ft or 1x 40ft container on the outer beams
- 2'' king pin
- One galvanized steel front wall approx. 400 mm high
- One spare wheel with bracket
- At the galvanized front connection strip: yellow-red air couplings
- 4 wheel chocks
- Remote steering from front and rear by cable remote control with push buttons, including track alignment monitoring for the axles
- Hydraulic couplings from gooseneck to lowbed with multi-coupling system instead of screw couplings
- Electro-hydraulic unit
- White reflector tape according to EU regulations on the sides, extension, and red at the rear
- 2 wooden blocks 500x250x200 mm
- European reflector plates (red-yellow) at the rear of the trailer
- On the gooseneck and rear panel, left and right, one bracket each for warning panels including socket
- Central lubrication system with 2 BEKAMAX (Pico) pumps for NLGI-2 standard grease
- Load pressure gauge to determine axle loads, including load chart
- On the gooseneck, plug-in ALU side and rear walls approx. 2,000 x 400 mm
- The rear galvanized plug-in posts are removable (body length approx. 2,120 mm)
- Separate air connection with air gun on the gooseneck
- Duomatic air coupling from gooseneck to lowbed
- Gooseneck closed at the rear upper section with a removable cover
- 1 pair of steel ramps to bridge the mountings of the lowbed
- Four extendable warning signs approx. 423 x 423 mm, extendable by approx. 400 mm
- Radio remote control for the steering in addition to the cable remote, with indicator lights on receiver for track monitoring
- 6 pairs of threaded blocks between lashing rings under the top chord on the outer beam for mounting screwable RUD rings VLBG-4
- 7 pairs of stake pockets for 100 x 50 mm plug-in posts in the outer frame of the loading platform
- Folding extensions, approx. 230 mm per side
- Anti-slip sand layer painted on the loading platform
- Dipper recess on the rear running gear closed at the front and rear with plug-in plates
- HRM metallization (High Resistance Metallisation) of the outer frame
- Complete steel construction shot-blasted, then the defined visible surfaces hot-finished with ZINACOR 850 metallization (Zinc 85% - Alu 15%)
Küçük ilan
Dortmund
2.568 km
Alçak yükleyici
FaymonvilleMAX Trailer 5-Achs-Tele-Semi mit hydr. Rampen
Ara
Durumu: yeni, boş ağırlık: 15.420 kg, azami yük ağırlığı: 61.080 kg, toplam ağırlık: 76.500 kg, dingil konfigürasyonu: 3 aks, yükleme alanı uzunluğu: 8.600 mm, yükleme alanı genişliği: 2.540 mm, yükleme alanı yüksekliği: 900 mm, lastik boyutu: 235/75/r17,5, renk: gri, Donanım: ABS, Gooseneck:
Gooseneck with rear bevel approx. 750 mm x 10°
3 pairs of lashing rings
30 mm thick hardwood flooring
Load area:
Extendable load area with rear bevel approx. 500 mm x 8°
8 pairs of outward folding lashing rings
1 pair of flat-fitted lashing rings at the front of the load area
Recesses in the outer frame of the loading area for attaching tie-down straps
Approx. 48 mm thick hardwood flooring, checker plate covering above the axles
Two-piece steel ramps:
One pair of galvanized two-piece steel ramps, approx. 2,750 + 1,400 x 800 mm, with approx. 48 mm thick hardwood covering. Ramp sections hydraulically lift and fold, hydraulically height-adjustable, and hydraulically shiftable. Maximum load per pair: 50,000 kg.
Landing legs:
• JOST landing legs (mechanical) with 2-speed gearbox for 24 t lifting capacity (50 t test load)
Axles and tires:
BPW axles and suspension, 4th and 5th axles steering
Technical axle load: 12,000 kg
4th and 5th axles with electro-magnetic reverse lockout, activated via reverse gear and manually
Tires 235/75 R 17.5 3PMSF
Braking system:
Braking system according to EU regulations with EBS-E (4S3M)
Sockets and lighting:
Electrical system in accordance with EU regulations, lighting 24 volts
ASPÖCK-NORDIK (ASS3)
ASPÖCK-UNIBOX at the front connector rail with sockets 24N, 24S & 15 pin
Connection compliant with ISO:
24N ISO-1185
24S ISO-3731
15 pin ISO-12098
Paintwork:
First-class and durable corrosion protection of the standard shot-blasted welded frame, ensured by a 2-component (2K) zinc dust primer
High-quality 2-component (2K) topcoat, single color MB 7350 Novagrau
Rear part metalized and painted in RAL 9010 (pure white)
No metallic paint possible
Steel construction:
Steel construction made of high-strength fine-grain steels
Steel grades:
S355J2+N/S355MC (yield strength 355 MPa)
S690QL/S700MC (yield strength 690 MPa)
Accessories:
One spare wheel with holder in front of bulkhead
2" kingpin
One galvanized steel front wall, approx. 400 mm high
Yellow-red air couplings mounted on the galvanized connector rail at the front
2 wheel chocks with holder on the front wall
Bracket at rear of gooseneck for ALU drive-on ramps
One holder for a rotating beacon at the rear of the trailer
Galvanized supports beneath the rear bevel of the loading area
White reflector tape according to EU regulations on the sides, extension, and rear in red
Electro-hydraulic unit at rear under the loading area
Mounts for warning signs with socket at the gooseneck and rear plate left and right
Ramp control valves fitted to right-hand side of the trailer
One mud flap at the rear of the trailer
Guodpfx Aol Sl Izjfvoa
Manual and documentation on USB stick
3.5" kingpin supplied loose
Plug-in ALU sideboards and rear wall on the gooseneck approx. 2,440 x 400 mm (LxH)
Rear galvanized drop-in stakes are removable (structure length approx. 2,560 mm)
3 pairs of WADER container pockets in the loading area for a 20' (30') or 40' container
6 pairs of stake pockets for plug-in stakes 100 x 50 mm in the outer frame of the loading area
Galvanized extensions, extendable by approx. 230 mm per side
Lifting axle on the front axle with control via TEBS E, depending on the current axle load and current loading condition
Square cleats 20 x 20 mm every 200 mm on the outer frame of the loading area's bevel
On the checker plates, above the kingpin and the loa...
Küçük ilan
Dortmund
2.568 km
Platform
FaymonvilleMAX Trailer 3-Achs-Mega-Tele-Plateau-Radmulden
Ara
Durumu: yeni, boş ağırlık: 9.500 kg, azami yük ağırlığı: 35.500 kg, toplam ağırlık: 45.000 kg, dingil konfigürasyonu: 3 dingil, yükleme alanı uzunluğu: 13.500 mm, yükleme alanı genişliği: 2.540 mm, süspansiyon: hava, lastik boyutu: 435/50 R 19.5, renk: gri, işletme ağırlığı: 9.500 kg, Donanım: ABS, Loading platform in extendable design:
Loading platform with hardwood floorboards, rear chamfer approx. 1,000 mm x 8°
1 pair of fixed wheel recesses, approx. 1,610 x 970 x 400 mm
2 pairs of lashing rings (LC 5,000 daN)
1 pair of lashing rings (LC 10,000 daN)
6 pairs of folding external lashing rings (LC 5,000 daN)
2 pairs of folding external lashing rings (LC 10,000 daN)
Cut-outs in the outer frame of the loading platform for hooking in tensioning straps (LC 2,000 daN)
Braking system:
Braking system in accordance with EU regulations with EBS-E (2S2M)
Paintwork:
Premium, durable corrosion protection for the standard shot-blasted welded frame guaranteed by a 2-component (2K) zinc dust primer
High-quality single-color 2-component (2K) top coat in Novagrau
Rear section metallised and painted in RAL 9010 (pure white)
No metallic effect paint possible
Gusdek Eammopfx Afvea
Landing legs:
JOST landing legs (mechanical) with 2-speed gearbox for 24t lifting capacity (50t test load)
Steel construction:
Steel construction made of high-strength fine-grain steels
Steel grades:
S355J2+N/S355MC (yield strength 355MPa)
S690QL/S700MC (yield strength 690MPa)
Electrical system:
Electrical system in accordance with EU regulations, 24 volt lighting
Sockets: 24N, 24S & 15-pin
Axles and tires:
BPW axles, air suspension, disc brakes (377 mm), with lift/lower function
The trailing steering axles can be locked for reversing by electro-magnetic control via reverse gear or manually
Axle tools
Tires 435/50 R 19.5
Accessories included:
At the front galvanized connection rail, yellow-red air couplings
4 wheel chocks with holders
2" king pin
Galvanized steel front wall, approx. 1600 mm high, EN12642-XL
White reflective tape to EU standards on the sides, on the extension, and red at the rear
Loading area with heavy-duty hardwood flooring
9 pairs of stake pockets for 100 x 50 mm plug-in stakes in the outer frame of the loading platform
1 spare wheel holder under the loading platform, right side of direction of travel
Galvanized drop-down supports under the loading platform chamfer
Sliding hook-in strips for ALU loading ramps at the rear of the vehicle
European reflective signs (red-yellow) at the rear of the trailer
A mudflap at the rear of the trailer
A bracket for a rotating beacon at the rear of the trailer
On the gooseneck and rear panel, left and right, each with a bracket for warning signs including socket
1 HDPE toolbox 620x360x610 under the loading platform, left side of direction of travel
4 pairs of WADER container locks in the loading platform for 1x 20ft container or 1x 40ft container; the extension is prepared with an additional locking position for a 45ft container
3 pairs of crosswise stake pocket strips mounted in the loading platform for 100 x 50 mm plug-in stakes
Lift axle on the front axle with control via TEBS E depending on current axle load and load status
Speed stickers 80 km/h at the rear and on both sides
Four warning panels, extendable by approx. 400 mm, approx. 423 x 423 mm, with LED position light. Each warning panel with a bracket for revolving beacon
Load gauge for determining axle loads including load chart
HRM metallization (High Resistance Metallisation) of the outer frame
Complete steel construction shot-blasted, then the defined visible surfaces are metallised
Küçük ilan
Dortmund
2.568 km
Alçak yükleyici
FaymonvilleMAX Trailer 3-Achs-Mega-Tele-Plateau-zwangsgel.
Ara
Durumu: yeni, boş ağırlık: 10.600 kg, azami yük ağırlığı: 35.400 kg, toplam ağırlık: 45.000 kg, dingil konfigürasyonu: 3 dingil, yükleme alanı uzunluğu: 13.500 mm, yükleme alanı genişliği: 2.540 mm, yükleme alanı yüksekliği: 940 mm, süspansiyon: hava, lastik boyutu: 235/75 R 17,5, renk: gri, Donanım: ABS, Loading platform:
- Loading platform with extendable design
- Loading platform with hardwood planks, approx. 500 mm x 8° rear chamfer
- 2 pairs of lashing rings (LC 5,000 daN)
- 1 pair of lashing rings (LC 10,000 daN)
- 6 pairs of outward-folding lashing rings (LC 5,000 daN)
- 3 pairs of outward-folding lashing rings (LC 10,000 daN)
- Cut-outs in the outer frame of the loading platform for attaching tension straps
Brake system:
- Brake system compliant with EU regulations with EBS-E (2S2M)
Paintwork:
- First-class and durable corrosion protection of the standard shot-blasted welded frame, guaranteed by a 2-component (2K) zinc dust primer
- High-quality 2-component (2K) topcoat, single-color in Novagrau (Nova grey)
- Rear section metallized and painted in RAL 9010 (Pure White)
- Metallic paint not available
Landing legs:
- JOST landing legs (mechanical) with 2-speed gearbox for 24t lifting capacity (50t test load)
Steel construction:
- Steel construction made of high-strength fine-grained steels
- Steel grades:
- S355J2+N/S355MC (yield strength 355MPa)
- S690QL/S700MC (yield strength 690MPa)
Electrical system:
- Electrical system according to EU regulations, LED lighting 24 Volt
- Sockets: 2x 7-pin & 1x 15-pin
Axles and tires:
- BPW axles, air-suspended, with disc brakes (377 mm), with lift/lower function
- Hydro-mechanically forced steering
- Axle tool kit
- Twin tires 235/75 R 17.5
Included accessories:
- Yellow-red air couplings on the galvanized front connection rail
- 4 chocks with holders
- 2" king pin
- Galvanized steel front wall approx. 1600 mm high
- White reflective tape as per EU regulations on sides, extension, and rear in red
- Loading platform with heavy-duty hardwood floor
- Steering from front and rear via cable
- Remote control via push buttons with single-track axle monitoring
- Radio remote control for auxiliary steering
- 9 pairs of stake pockets for plug-in stanchions 100 x 50 mm in the outer frame of the loading platform
- Galvanized folding supports under the loading platform chamfer
- Sliding hook-in rail for ALU ramps at the rear of the vehicle
- European reflective signs (red-yellow) at the rear of the trailer
- One mudflap at the rear of the trailer
- One bracket for a rotating beacon at the rear of the trailer
- On the gooseneck and on the left/right rear panel each: one holder for warning signs including socket
- INOX toolbox 1,500 x 390 x 810 under the loading platform on the right (direction of travel)
Gujdpfx Afsl Ux Rwovea
- BEKAMAX (Pico) central lubrication system with standard grease NLHI-2 and removable guard for the pump
- 6 pairs of WADER container locks in the loading platform, for 1x 20ft container, 2x 20ft container, or 1x 40ft container, with additional locking point in the extension for a 45ft container
- 4 pairs of cross-mounted stake pocket rails in the loading platform, for plug-in stanchions 100 x 50 mm
- Lift axle at the front axle with TEBS-controlled adjustment, depending on current axle load and loading status
- Speed stickers 80 km/h at rear and both sides
- Four warning signs extendable by approx. 400 mm, approx. 423 x 423 mm, with LED position light
- Holder for rotating beacon on warning signs
- Load pressure gauge for axle load determination, including load diagram
- HRM metallization (High Resistance Metallisation) of the outer frame
- Complete steel construction shot-blasted, then defined visible areas hot-finished metallized with ZINACOR 850 (Zinc 85% - Alu 15%)
Küçük ilan
Dortmund
2.568 km
Platform
FaymonvilleMAX Trailer 3-Achs-Doppeltele-Plateau zwangsgel.
Ara
Durumu: yeni, boş ağırlık: 11.300 kg, azami yük ağırlığı: 36.700 kg, toplam ağırlık: 48.000 kg, dingil konfigürasyonu: 3 dingil, yükleme alanı uzunluğu: 13.600 mm, yükleme alanı genişliği: 2.540 mm, yükleme alanı yüksekliği: 1.250 mm, süspansiyon: hava, lastik boyutu: 385/65 r 22,5, renk: gri-siyah, Donanım: ABS, Loading Area:
Extendable loading platform with pneumatically operated locking mechanism
A fixed intermediate table approx. 250 mm wide is mounted on the central beam
8 pairs of folding lashing rings (LC 5,000 daN)
3 pairs of folding lashing rings (LC 10,000 daN)
Cut-outs in the outer frame of the loading area for hooking in tension straps (LC 2,000 daN)
Axles and Tyres:
BPW axles and suspension, all axles hydromechanically forced-steered
Disc brakes, technical axle load: 10,000 kg
Air suspension with lift and lower valve
Axle tool kit
6 tyres 385/65 R 22.5
Brake System:
Brake system according to EU regulations with EBS-E (2S2M)
Gsdshlz Shjpfx Afvoua
Landing Legs:
JOST mechanical landing legs with 2-speed gearbox for 24 t lifting capacity (50 t test load)
Steel Construction:
Steel construction made of high-strength fine-grained steels
Steel grades:
S355J2+N/S355MC (yield strength 355 MPa)
S690QL/S700MC (yield strength 690 MPa)
Electrical System:
Electrical system in line with EU regulations, lighting 24 Volt ASPÖCK-NORDIK (ASS3)
ASPÖCK-UNIBOX on the front connection bar with 24N, 24S, and 15-pin sockets
Connections per ISO:
24N ISO-1185
24S ISO-3731
15-pin ISO-12098
Painting:
Top-class and durable corrosion protection of the standard shot-blasted welded frame provided by a 2-component (2K) zinc-rich primer
High-quality 2-component (2K) top coat in single-colour Nova Grey
Rear end metallised and painted in RAL 9010 (pure white)
Metallic paint not available
Included Accessories:
One bracket for warning signs, each at the gooseneck and the rear end plate, left and right, including socket
Remote steering operated from front and rear using cable remote control with push-buttons, with single-track alignment of the axles
Electro-hydraulic power pack
4 wheel chocks with holder on the front bulkhead
2" kingpin
One galvanised steel headboard approx. 2,200 mm high
Yellow-red pneumatic couplings on the galvanised connection rail at the front
White reflective tape per EU regulations on the sides, on the extension, and red at the rear
European reflective warning plates (red-yellow) at the rear of the trailer
One mud flap at the rear of the trailer
Manual and documentation
Bracket for revolving beacon at the rear of the trailer
Loading surface with approx. 30 mm thick wooden floor embedded in Omega profiles
10 pairs of stanchion pockets for plug-in stanchions 100 x 50 mm in the outer frame of the loading area
1 spare wheel holder under the loading platform on the right in the direction of travel
6 pairs of WADER container pockets in the loading area, for 1x 20ft container, 2x 20ft containers, or 1x 40ft container; an additional locking point in the extension is provided for a 45ft container
5 pairs of cross-mounted stanchion pocket rails in the loading area for plug-in stanchions 100 x 50 mm
One galvanised bracket crosswise under the loading platform (2,390 x 720 x 400 mm)
Entry ladder mounted on the right side in the direction of travel
HDPE toolbox 1,200 x 500 x 480 mounted at the front under the loading surface on the left in the direction of travel
Lifting axle on front axle, control by TEBS E depending on current axle load and load status
Central lubrication system with 2 BEKAMAX (Pico) pumps with NLGI-2 general-purpose grease and removable guarding around the pump
Red/white reflective tape in the loading platform extension
A sand layer painted on the central beam as anti-slip protection
Radio remote control for rear steering in addition to cable remote, with in
Küçük ilan
Dortmund
2.568 km
Platform yarı römork
FaymonvilleMAX Trailer 4-Achs-Ballastauflieger
Ara
Durumu: yeni, boş ağırlık: 9.600 kg, azami yük ağırlığı: 53.400 kg, toplam ağırlık: 63.000 kg, dingil konfigürasyonu: 3 aks, yükleme alanı uzunluğu: 12.400 mm, yükleme alanı genişliği: 2.540 mm, yükleme alanı yüksekliği: 1.340 mm, süspansiyon: hava, lastik boyutu: 385/65 R22.5, renk: gri, Donanım: ABS, Cargo area:
- Cargo area with approx. 30 mm thick hardwood floor
- 10 pairs of outward-folding lashing rings
Landing legs:
- JOST landing gear with 2-speed gearbox for 24 t lifting capacity
Axles and tyres:
- BPW axles, technical capacity 10,000 kg, first axle fixed, all other axles hydraulically/mechanically forced-steered, mounted on a turntable
- Air suspension with raise/lower valve
- Axle tools
- Tyres: 385/65 R22.5
Braking system:
- WABCO braking system according to EU regulations with EBS-E (4S3M)
Steel construction:
- Steel construction made of high-strength fine grain steels
- Steel grades:
Guodpfx Aferq Dlfjvea
- S355J2+N / S355MC
- S690QL / S700MC
Electrics:
- Electrical system according to EU regulations, 24-volt lighting
- ASPÖCK-UNIBOX at the front connection strip, with 24N, 24S & 15-pin sockets
- Connection according to ISO: 24N ISO-1185, 24S ISO-3731, 15-pin ISO-12098
Painting:
- First-class, durable corrosion protection of the standard shot-blasted welded frame guaranteed by a 2-component zinc dust primer
- High-quality single-colour 2-component top coat in Nova grey
- Rear section metallized and painted in RAL 9010
Accessories included:
- Cargo area with approx. 30 mm thick hardwood floor
- 2" king pin
- Galvanized steel front wall approx. 1,200 mm high, EN12642-XL
- Yellow-red air couplings at the galvanized front connection strip
- 4 wheel chocks with holder at the front wall
- Holder for 1,000 mm posts in the rear central beam
- At the gooseneck and the rear plate, holders for warning panels including socket, left and right
- Remote steering from front and rear by cable remote control with push buttons, including single tracking control for the axles
- Electro-hydraulic power unit
- White reflective tape according to EU regulations on the sides of the trailer, red at the rear
- 12 pairs of posts pockets for 100 x 50 mm plug-in stakes in the side frame of the cargo area
- European reflector plates at the rear of the trailer
- A holder for a revolving beacon at the rear of the trailer
- A mudflap at the rear of the trailer
- Manual and description on USB stick
- BEKAMAX (Pico) central lubrication system with standard grease NLGI-2 and removable protection around the pump
- TPMS tyre pressure monitoring system:
- The tractor unit must be capable of receiving and displaying this data in order for correct indication
- Lift axle on the front axle controlled via TEBS E depending on current axle load and load condition
- Radio remote control for remote steering in addition to cable remote, with indicator lights on the receiver for single tracking control
- 5 pairs of crosswise stake pocket strips mounted in the cargo area for 100 x 50 mm plug-in stakes
- 80 km/h speed stickers at rear and both sides
- Adjustable access ladders mounted on the left and right sides in the direction of travel
- 2 reversing lights mounted on the rear plate
- Load gauge for axle loads including load diagram
- HRM metallization of the side frame: complete steel frame shot-blasted, then the defined visible areas metallized with ZINACOR 850 (85% zinc – 15% aluminium) hot finished
Küçük ilan
Essen
2.594 km
Alçak şasi dorse
FAYMONVILLEMAX Trailer MAX510 Tiefbett 2x10 t
Ara
Durumu: yeni, azami yük ağırlığı: 30.190 kg, toplam ağırlık: 43.000 kg, dingil konfigürasyonu: 2 dingil, Donanım: ABS, You can find our full range of vehicles, including immediately and short-term available units, on our website.
Excerpt from the Equipment List. Complete equipment details available upon request.
Loading Platform:
- Low bed with external beams, designed as extendable SUPER LOW version, approx. 6,850 mm in length
- Low bed with fixed hardwood floor, approx. 40 mm thick, and mechanical locking
- Service lines routed securely inside the extendable beams, automatically adjusting to the respective bed length
- 5 pairs of lashing rings, foldable to the outside (LC 10,000 daN)
- 6 pairs of threaded blocks on the inner beam for mounting bolted RUD rings
Gooseneck:
- Gooseneck in SNT design for optimized loading length, approx. 3,750 mm long
- Gooseneck hydraulically liftable/lowerable and detachable
- Technical fifth wheel load: 23,000 kg
- For tractor units: 4x2, 6x2
Rear Chassis:
- Rear chassis in short version with closed outer frame and checker plate cover
- Chassis with excavator recess, closed in the rear half to accommodate air tanks
- 2 pairs of lashing rings, foldable to the outside (LC 5,000 daN)
- 1 pair of lashing rings, foldable to the outside (LC 10,000 daN)
- 1 pair of lashing rings, horizontal, mounted at the front & rear of the chassis (LC 10,000 daN)
Guedpfxjxarl No Afvea
Axles:
- BPW axles with hydro-mechanical forced steering
- Technical axle load: 12,000 kg each
- Air suspension with lift and lower valve
Tyres:
- 245/70 R 17.5 3PMSF tyres
- Manufacturer of our choice
- Load index (146/146F)
- TPMS tyre pressure monitoring system per ECE R 141
- Data transfer to the tractor via standardized EBS interface (ISO 11992)
- The tractor must be capable of transmitting and displaying these data for correct indication
Brake System:
- Brake system compliant with EU regulations, with EBS-E (2S2M)
Electrical System:
- Electrical system compliant with EU regulations, 24-volt lighting ASPÖCK-NORDIK (ASS3)
- All LED side marker lights flash with the turn signal
- ASPÖCK-UNIBOX on the front connection panel with 24N, 24S, and 15-pin sockets according to ISO:
- 24N ISO-1185
- 24S ISO-3731
- 15-pin ISO-12098
Steel Structure:
- Made from high-strength fine-grained steels
- Steel grades: S355J2+N / S355MC (yield strength 355 MPa), S690QL / S700MC (yield strength 690 MPa)
Coating:
- Complete steel frame automatically shot-blasted after welding
- Second blasting treatment with corundum for optimal coating adhesion
- HRM-metallization of the entire vehicle chassis with ZINACOR 850 (85% zinc/15% aluminum) for superior corrosion protection
- Final topcoat: 2 layers of 2K paint, single color, RAL 3002 carmine red, in accordance with RAL system 841GL
- Rims in silver
- Rear section metallized and painted in RAL 9010 (pure white)
- Metallic paint not available
- Paint build-up tested in salt spray fog test according to ISO 9227-NSS
- Cavity sealing with special wax
Including the following additional equipment:
- 2-inch king pin
- One galvanized steel front wall, approx. 400 mm high
- Remote steering from front and rear, cable remote controlled via push buttons, with single-track steering alignment (installation in the tractor unit not included)
- Hydraulic connections from gooseneck to low bed with multi-coupling instead of screw couplings
- Electro-hydraulic power unit
- Preparation for mounting of bolt-on container positions for 1x 20' or 1x 40' container on the external beams
- Without container locks
Küçük ilan
Essen
2.594 km
Alçak şasi dorse
FAYMONVILLEMAX Trailer MAX110 Semi-Tieflader
Ara
Durumu: yeni, azami yük ağırlığı: 45.820 kg, toplam ağırlık: 58.000 kg, dingil konfigürasyonu: 3 aks, toplam genişlik: 2.540 mm, Donanım: ABS, You can find our complete vehicle inventory, including immediately and short-term available vehicles, on our website.
Gusdpfexbmpfjx Afvja
Excerpt from the equipment. Full specifications available upon request.
Gooseneck:
* Gooseneck with chamfered front corners approx. 45° and rear chamfer approx. 750 mm x 10°
* 3 pairs of lashing rings (LC 5,000 daN)
* Hardwood flooring approx. 30 mm thick
Loading platform, extendable design:
* Loading platform with extendable section and rear chamfer approx. 1,000 mm x 8°
* 5 pairs of outward folding lashing rings (LC 5,000 daN)
* 3 pairs of outward folding lashing rings (LC 10,000 daN)
* 1 pair of recessed lashing rings at the front of the loading platform (LC 10,000 daN)
* Cutouts in the outer frame for attaching tension belts (LC 2,000 daN)
* Hardwood flooring approx. 48 mm thick, checker plate over axles
Axles:
* BPW axles and suspension
* 1st axle rigid, all other axles hydro-mechanically forced steered
* Technical axle load: 12,000 kg per axle
* Air suspension with raise/lower valve
* Axle tools included
Tyres:
* Tyres 245/70 R 17.5 3PMSF, load index (146/146 F)
* Manufacturer at our discretion
* TPMS tyre pressure monitoring system according to ECE R 141
* Data transmission to tractor unit via standardised EBS interface per ISO 11992
* For correct display, the tractor unit must support transmitting and displaying these data
Landing legs:
* JOST landing legs (mechanical), 2-speed gearbox, approx. 24 t lifting capacity (approx. 50 t test load)
Brake system:
* Wabco brake system according to EU regulations with EBS-E (4S3M), without connecting lines to the tractor unit
Paintwork:
* Complete steel structure shot-blasted automatically after welding
* Second blasting using corundum for optimum coating adhesion
* Final coating with 2 layers of 2K top coat, single color RAL 3002 Carmine Red as per RAL System 841GL
* Rims in silver-grey
* Rear section metalized and painted in RAL 9010 (pure white)
* Metallic paint not available
* Coating tested in salt spray test according to ISO 9227-NSS
* Cavities sealed with special wax
Steel structure:
* Steel construction made from high-strength fine-grain steels
* Steel grades: S355J2+N/S355MC (yield strength 355 MPa), S690QL/S700MC (yield strength 690 MPa)
Electrical system:
* Electrical system according to EU regulations
* Lighting 24 Volt ASPÖCK-NORDIK (ASS3)
* All LED side marker lights flash with indicators
* ASPÖCK-UNIBOX located on the front connection strip, with 24N, 24S & 15-pin sockets according to ISO
* 24N ISO-1185, 24S ISO-3731, 15-pin ISO-12098
Including the following additional equipment:
* 2-inch kingpin
* Galvanized steel front wall, approx. 400 mm high
* Yellow-red air couplings on front galvanized connection strip
* Electro-hydraulic unit
* Forced steering front/rear via cable remote control (push buttons), with single-track control of the axles (no installation in the tractor unit)
* Galvanized folding supports under the rear chamfer of the platform
* 1 pair of recessed lashing rings along the rear central member in the chamfer (LC 10,000 daN)
* Plug-in aluminium side and rear walls on the gooseneck, approx. 2,440 x 400 mm (L x H)
* Rear galvanized plug-in stanchions removable (superstructure length approx. 2,560 mm)
* Galvanised toolbox integrated into the chamfered gooseneck
* 3 pairs of WADER container pockets in the platform for one 20' (30?) or
Küçük ilan
Essen
2.594 km
Alçak şasi dorse

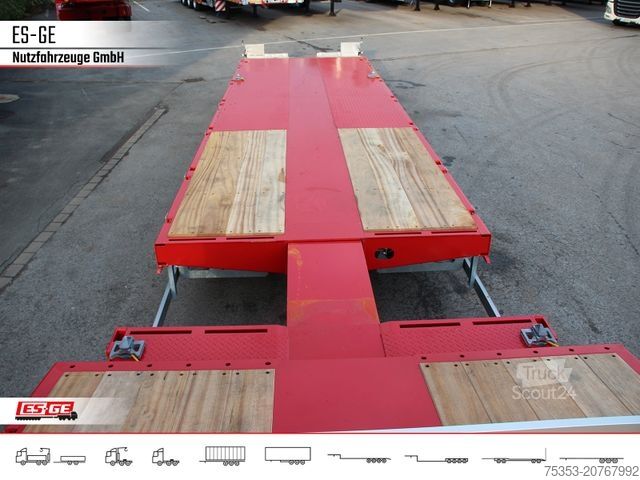

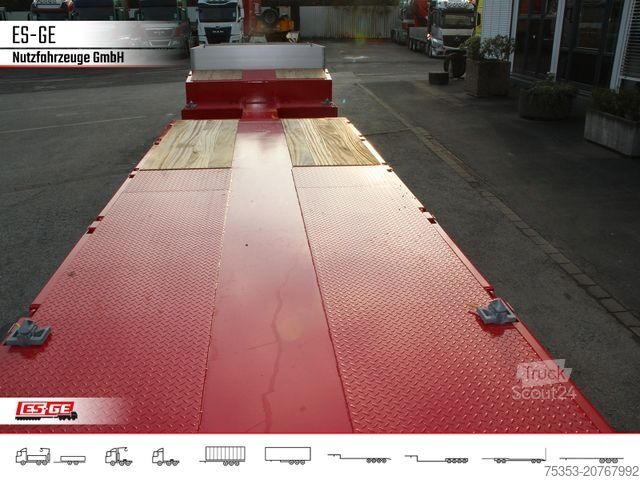

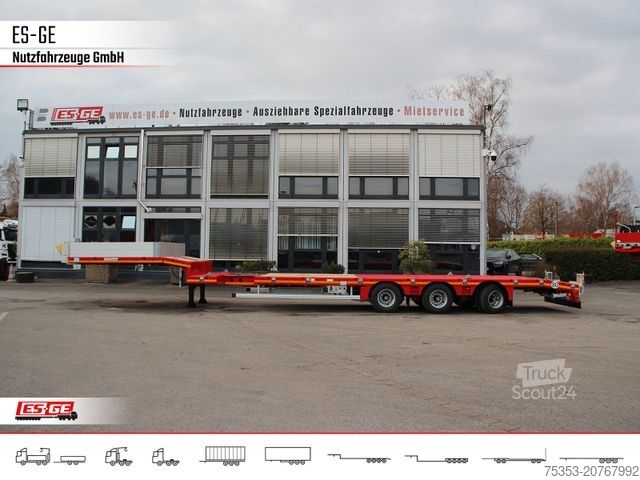

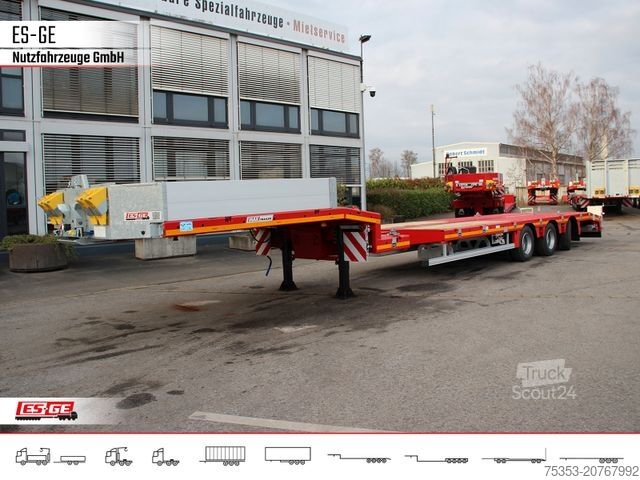

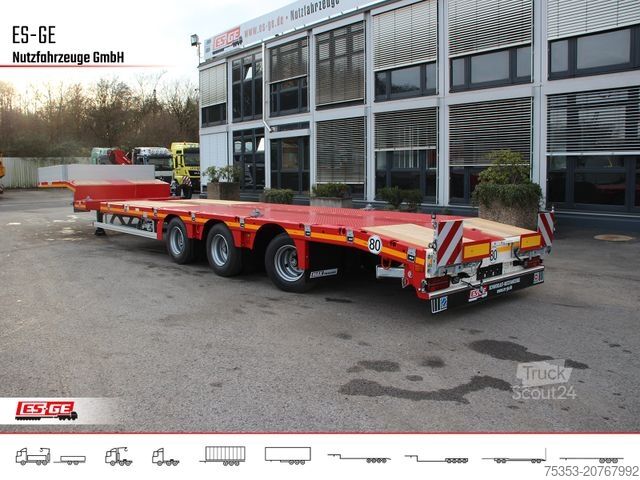

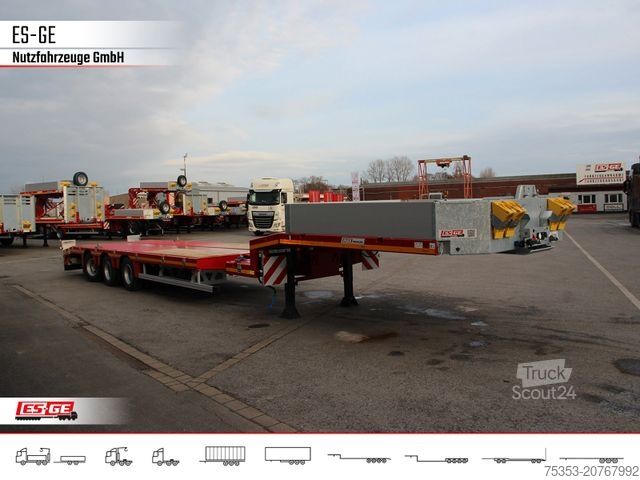

FAYMONVILLEMAX Trailer MAX100 Semi-Tieflader
Ara
Durumu: yeni, azami yük ağırlığı: 39.670 kg, toplam ağırlık: 50.960 kg, dingil konfigürasyonu: 3 aks, toplam genişlik: 2.540 mm, Donanım: ABS, You can find our complete vehicle inventory with immediately and short-term available vehicles on our website.
Summary of equipment. Full equipment details available upon request.
Gooseneck:
* Gooseneck with approx. 30 mm thick hardwood flooring
* Gooseneck at the rear, straight design
* 3 pairs of lashing rings (LC 5,000 daN)
Loading Area:
* Extendable loading area

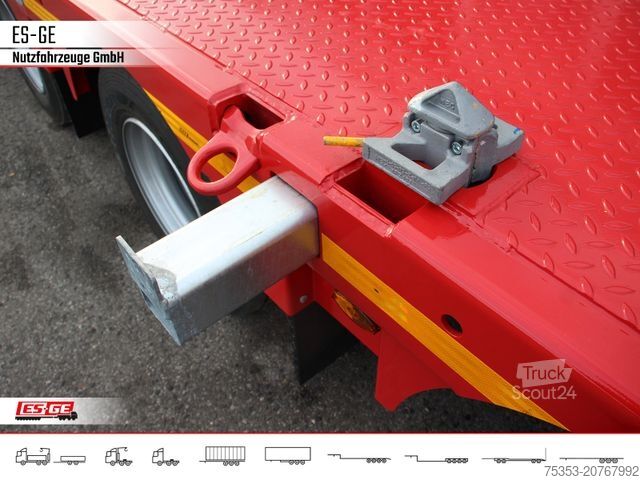

* 5 pairs of fold-out lashing rings on the outside (LC 5,000 daN)
* 3 pairs of fold-out lashing rings on the outside (LC 10,000 daN)
* 1 pair of lying lashing rings at the front of the loading area (LC 10,000 daN)
* Cutouts in the outer frame of the loading area for attaching tension belts (LC 2,000 daN)
* Approx. 48 mm thick hardwood flooring, diamond plate over the axles
Landing Legs:
JOST mechanical landing legs with 2-speed gearbox for approx. 24 t lifting capacity (approx. 50 t test load)

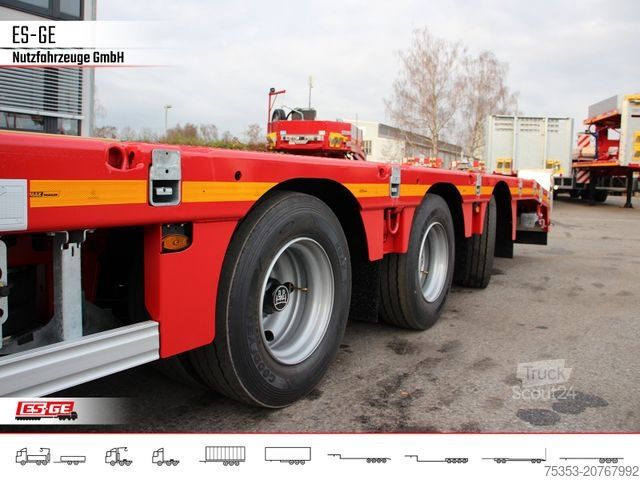

Axles:
* BPW axles, two fixed and two self-steering axles
* Air suspension with lifting/lowering function
* Self-steering axles with electromagnetic reversing lock, can be activated via reverse gear or manually
* Drum brakes
* Axle tools
Tyres:
* 205/65 R 17.5
* Brand of our choice
* TPMS tyre pressure monitoring system according to ECE R 141
* Data transmission to the tractor via standardised EBS interface according to ISO 11992
* For correct display, the tractor unit must be able to transmit and display this data
Brake System:
* Brake system in compliance with EU regulations with EBS-E (4S3M), without connector lines to the tractor unit
Steel Construction:
* Steel structure made from high-strength fine-grained steels
* Steel grades: S355J2+N/S355MC (yield strength 355 MPa), S690QL/S700MC (yield strength 690 MPa)
Gjdpfxexarlvo Afvsua
Painting:
* Entire steel structure automatically shot-blasted after welding
* Secondary blast treatment with corundum for optimal coating adhesion
* HRM metallisation of the entire chassis with ZINACOR 850 (85% zinc/15% aluminium) for maximum corrosion protection
* Final paint finish with 2 coats of 2K topcoat, single colour in RAL 3002 carmine red, according to RAL 841GL
* Rims in silver
* Rear section metallised and painted in RAL 9010 (pure white)
* Metallic paints not possible
* Paint system tested in salt spray test according to ISO 9227-NSS
* Sealing of cavities with special wax
Electrical System:
* Electrical system according to EU regulations, 24 Volt ASPÖCK-NORDIK (ASS3) lighting
* All LED side marker lights flash with the indicators
* ASPÖCK-UNIBOX on the front connection rail with 24N, 24S & 15-pin sockets; connections according to ISO (24N ISO-1185, 24S ISO-3731, 15-pin ISO-12098)
Accessories included:
* 2-inch king pin
* One spare wheel holder in front of the bulkhead
* Yellow-red air couplings on the galvanised front connection rail
* Galvanised drop supports under the ramped section of the loading area
* One galvanised steel bulkhead (EN12642-XL), approx. 1,600 mm high
* Removable ALU side boards and rear gate approx. 2,440 x 400 mm (L x H) on the gooseneck
* Rear galvanised plug-in stanchions are removable (body length approx. 2,560 mm)
* Support block with 1 pair of WADER container pockets; fifth wheel load approx. 20,000 kg
* 7 pairs of WADER container pockets for 1x 20' container in the loading area
* 1x 40' container in the loading area, 1x 40' container above the gooseneck, 2x 20' container
* 7 pairs of stanchion pockets for plug-in stanchions 100 x 50 mm in the outer frame of the loading area
* One galvanised crosswise holder under...
Küçük ilan
Essen
2.594 km
Alçak şasi dorse

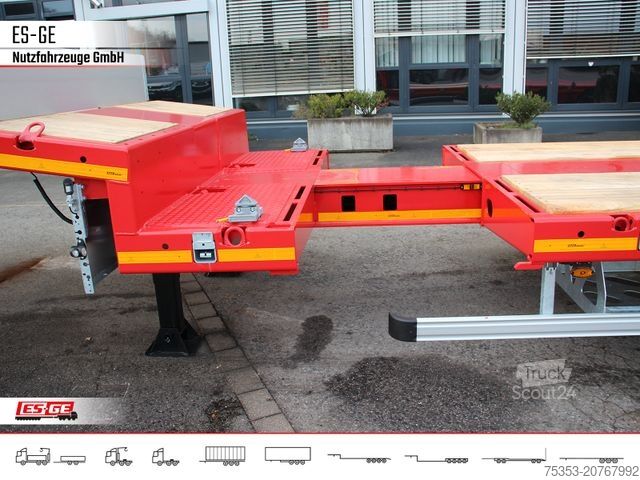

FAYMONVILLEMAX Trailer MAX100 Semi-Tieflader Radmulden
Ara
Durumu: yeni, azami yük ağırlığı: 36.360 kg, toplam ağırlık: 48.000 kg, dingil konfigürasyonu: 3 dingil, toplam genişlik: 2.540 mm, Donanım: ABS, You can find our complete stock of vehicles, including those available immediately or at short notice, on our website.
Excerpt from the equipment list. Full equipment details available on request.
Gooseneck:
* Gooseneck with front chamfered corners approx. 45° and rear bevel approx. 750 mm x 10°
* 3 pairs of lashing rings (LC 5,000 daN)
* Hardwood flooring approx. 30 mm thick
Loading Platform:
* Telescopic loading platform with rear chamfer approx. 1,000 mm x 8°
* 1 pair of fixed wheel recesses in front of the axles, approx. 2,850 x 970 x 400 mm (L x W x D)
* Wheel recesses with square climbing strips approx. 15 x 15 mm as well as lower area widenings
* Between the 1st and 2nd axle, one pair of fixed wheel recesses, approx. 1,610 x 970 x 400 mm (L x W x D)
* Incl. 3-piece removable galvanized covers over the wheel recesses (width approx. 670 mm) – max. point load 5 t each
* Recess in the chamfer and protruding into the loading platform to accommodate an excavator bucket handle (approx. 2,900 x 750 x 210/290 mm – L x W x H)
* 1 pair of horizontal lashing rings at the front of the loading platform (LC 10,000 daN)
* 5 pairs of fold-out lashing rings to the outside (LC 5,000 daN)
* 2 pairs of fold-out lashing rings to the outside (LC 10,000 daN)
* 2 pairs of lashing rings in the excavator bucket recess (LC 5,000 daN)
* Cutouts in the outer frame of the loading platform for attaching tension belts (LC 2,000 daN)
Two-part steel ramps:
* One pair of galvanized two-part steel ramps, approx. 2,750 + 1,400 x 800 mm, with approx. 48 mm thick hardwood covering
* Ramps with hydraulically foldable ramp sections and hydraulic lifting gear, hydraulically adjustable
* Maximum load per pair: 40,000 kg
Landing legs:
JOST landing legs (mechanical) with 2-speed gearbox for approx. 24 t lifting capacity (approx. 50 t test load)
Axles:
* BPW axles and suspension, 2 fixed axles, 1 trailing steering axle
* Technical axle load: 12,000 kg each
* Electromagnetic reverse lockout via reverse gear and manual activation
* Air suspension with lift and lower valve
Tyres:
* Tyres 235/75 R 17.5 3PMSF – make at our discretion
TPMS:
* TPMS Tyre Pressure Monitoring System according to ECE R 141
Gjdpfeyhkq Uex Afvsua
Brake system:
* WABCO brake system in accordance with EU regulations with EBS-E (2S2M)
Paintwork:
* HRM metallization of the entire vehicle chassis with ZINACOR 850 (85% zinc / 15% aluminum) to ensure optimal corrosion protection
* Final coating with two layers of 2K topcoat, single-color in RAL 3002 Carmine Red, according to RAL System 841GL
* Rims in silver-grey
Incl. the following additional features:
* 2-inch kingpin
* One galvanized steel front wall, approx. 400 mm high
* 3 pairs of recessed lashing rings along the central beam (LC 5,000 daN)
* Electro-hydraulic unit at the rear, under the loading platform
* On the gooseneck, plug-in aluminum side and rear panels, approx. 2,440 x 400 mm (L x H). The rear galvanized stanchions are removable. (Body length approx. 2,560 mm)
* One galvanized toolbox, integrated into the chamfered gooseneck
* 2 pairs of WADER container pockets in the loading platform for a 20' or 30' container
* 3 pairs of stanchion pockets for plug-in stanchions approx. 100 x 50 mm in the outer frame of the loading platform
* 3 pairs of additional removable, galvanized covers over the wheel recesses – max. point load 3.5 t each
* One removable galvanized intermediate table with 1 pair of WADER container pockets
* 1 additional hook-on intermediate table, ap
Küçük ilan
Essen
2.594 km
Alçak şasi dorse
FAYMONVILLEMAX Trailer MAX100 Semi-Tieflader Hebebett
Ara
Durumu: yeni, azami yük ağırlığı: 37.075 kg, toplam ağırlık: 48.000 kg, dingil konfigürasyonu: 3 dingil, toplam genişlik: 2.540 mm, Donanım: ABS, You can find our complete vehicle inventory, including immediately and short-term available vehicles, on our website.
Extract from the equipment details. Complete specification available upon request.
Gooseneck:
* Gooseneck with front corners chamfered approx. 45°, with rear bevel approx. 750 mm x 10°
* 3 pairs lashing rings (LC 5,000 daN)
* Hardwood flooring, approx. 30 mm thick
Loading platform:
* Loading area aft of the gooseneck hydraulically liftable and lowerable, length approx. 2,800 mm, with rear bevel approx. 1,000 mm x 8°
* 6 pairs outward-folding lashing rings (LC 5,000 daN)
* 2 pairs outward-folding lashing rings (LC 10,000 daN)
* 1 pair inward-folding lashing rings at the central beam front (LC 10,000 daN)
* Cutouts in the external frame of the loading area for securing strap hooks (LC 2,000 daN)
* Grating floor covering C40/4 (point load approx. 2.3 t over an area of approx. 20 x 20 cm), checker plate floor covering above the axles
Two-piece steel ramps:
* One pair galvanized two-piece steel ramps, approx. 2,750 + 1,400 x 800 mm, with grating surface C40/4 (point load approx. 2.2 t over an area of approx. 20 x 20 cm)
* Ramp with hydraulically foldable ramp sections
* Hydraulic lifting unit, hydraulically adjustable
* Maximum load capacity per pair: approx. 40,000 kg
Landing legs:
* JOST mechanical landing legs with 2-speed gearbox for approx. 24 t lifting capacity (approx. 50 t test load)
Axles:
* BPW axles and suspension, 2 rigid axles, 1 trailing steered axle
* Technical axle load: 12,000 kg each
* Electromagnetic reverse lock, activated via reverse gear and manually
* Air suspension with lifting and lowering valve
Brake system:
* WABCO brake system according to EU regulations with EBS-E (2S2M)
Gusdjyhkrrjpfx Afvea
Tyres:
Tyres 235/75 R 17.5 3PMSF – make at our discretion
TPMS:
* Tire Pressure Monitoring System (TPMS) according to ECE R 141
Paintwork:
* HRM metallization of the entire chassis with ZINACOR 850 (85% zinc/15% aluminum) for optimal corrosion protection
* Final coating with two layers of 2K top coat, single color in RAL 3002 Carmine Red in accordance with RAL System 841GL
* Wheels in silver grey
Accessories included:
* 2-inch kingpin
* One galvanized steel front wall, approx. 400 mm high
* Grating floor covering in the gooseneck bevel C30/3 (point load approx. 2 t over an area of approx. 20 x 20 cm)
* Grating floor covering in the loading platform bevel C40/4 (point load approx. 3.4 t over an area of approx. 20 x 20 cm)
* Electro-hydraulic unit at the rear beneath the loading area
* On the gooseneck – plug-in aluminum side and rear walls, approx. 2,440 x 400 mm (L x H). The rear galvanized stake pockets are removable (body length approx. 2,560 mm)
* One electric cable winch with remote control, approx. 5,400 kg pulling force, incl. wire rope approx. 9.5 mm thick, approx. 24 m long, with guide roller
* Bolted approx. 5t ring for winch cable insertion on the gooseneck without deflection roller
* One galvanized toolbox, integrated in the gooseneck bevel with an opening for a winch
* Grating floor covering on the gooseneck C30/3 (point load approx. 2t over an area of approx. 20 x 20 cm)
* 7 pairs of stake pockets for plug-in stanchions approx. 100 x 50 mm in the external frame of the loading area
* Lift axle on the front axle, controlled via TEBS E in accordance with current axle load and loading condition
* 7 pairs of recessed lashing rings along the central beam (LC 5,000 daN): 2 pairs in the lift bed, 5 pairs at the r
Küçük ilan
Essen
2.594 km
Alçak şasi dorse
FAYMONVILLEMAX Trailer MAX100 Semi-Tieflader Hebebett
Ara
Durumu: yeni, azami yük ağırlığı: 37.075 kg, toplam ağırlık: 48.000 kg, dingil konfigürasyonu: 3 dingil, toplam genişlik: 2.540 mm, Donanım: ABS, You can find our complete vehicle inventory, including immediately and short-term available vehicles, on our website.
Extract from the equipment list. Full specifications available on request.
Gooseneck:
* Gooseneck with beveled front corners approx. 45° and rear chamfer approx. 750 mm x 10°
* 3 pairs of lashing rings (LC 5,000 daN). Hardwood flooring approx. 30 mm thick
Loading Platform:
* Platform behind the gooseneck hydraulically liftable and lowerable, approx. 2,800 mm long, with rear chamfer approx. 1,000 mm x 8°
* 6 pairs of fold-out lashing rings (LC 5,000 daN)
* 2 pairs of fold-out lashing rings (LC 10,000 daN)
* 1 pair of fold-in lashing rings on the central beam at the front (LC 10,000 daN)
* Cut-outs in the outer frame of the platform for attaching tension belts (LC 2,000 daN)
* Grating surface C40/4 (point load approx. 2.3 t on an area of approx. 20 x 20 cm), over axles with checker plate
Two-piece Steel Ramps:
* One pair of galvanized two-piece steel ramps, approx. 2,750 + 1,400 x 800 mm, with grating surface C40/4 (point load approx. 2.2 t on an area of approx. 20 x 20 cm)
* Ramp with hydraulically folding and unfolding ramp sections. Hydraulic lifting, hydraulically adjustable
* Maximum load per pair: approx. 40,000 kg
Landing Gear:
* JOST landing legs (mechanical) with 2-speed gearbox for approx. 24 t lifting capacity (approx. 50 t test load)
Axles:
* BPW axles and suspension, 2 rigid axles, 1 self-steering axle
* Technical axle load: 12,000 kg each
* Electromagnetic reverse lock, activated via reverse gear and manually
* Air suspension with lift and lower valve
Brake System:
* WABCO braking system in accordance with EU regulations, with EBS-E (2S2M)
Tires:
* Tires 235/75 R 17.5 3PMSF – brand at our discretion
TPMS:
* TPMS tire pressure monitoring system in accordance with ECE R 141
Paintwork:
* HRM metallization of the entire vehicle chassis with ZINACOR 850 (85% zinc/15% aluminum) ensuring optimal corrosion protection
* Final paint with 2 layers of 2K top coat, single color in RAL 3002 carmine red, in accordance with RAL System 841GL
* Wheels in silver-gray
Accessories included:
* 2-inch kingpin
* Galvanized steel front wall approx. 400 mm high
* Grating surface in the gooseneck chamfer C30/3 (point load approx. 2 t on an area of approx. 20 x 20 cm)
* Grating surface in the loading platform chamfer C40/4 (point load approx. 3.4 t on an area of approx. 20 x 20 cm)
* Painted sand layer as anti-slip on the checker plates above the kingpin and platform
* Electro-hydraulic unit at rear beneath the loading platform
* On the gooseneck: plug-in aluminum side boards and rear board, approx. 2,440 x 400 mm (L x H). The rear galvanized stakes are removable. (Body length approx. 2,560 mm)
* Electric cable winch with radio remote control, lifting force approx. 5,400 kg, incl. approx. 9.5 mm thick wire cable, approx. 24 m long, with cable guiding roller
* Bolted approx. 5 t ring for redirecting the winch cable on the gooseneck without guide pulley
Gsdpfoyhkqzox Afvsua
* One galvanized toolbox integrated in the chamfered gooseneck with an opening for a cable winch
* Grating surface on the gooseneck C30/3 (point load approx. 2 t on an area of approx. 20 x 20 cm)
* 7 pairs of stake pockets for plug-in stakes, approx. 100 x 50 mm, in the outer frame of the loading platform
* Lift axle on the front axle, controlled via TEBS E based on current axle load and loading status
* 7 pairs inst...
Küçük ilan
Dortmund
2.568 km
Platform yarı römork
FaymonvilleMAX Trailer 3-Achs-Plateau-Sattelaufl.
Ara
Durumu: yeni, boş ağırlık: 6.350 kg, azami yük ağırlığı: 38.650 kg, toplam ağırlık: 45.000 kg, dingil konfigürasyonu: 3 dingil, yükleme alanı uzunluğu: 13.600 mm, yükleme alanı genişliği: 2.540 mm, süspansiyon: hava, lastik boyutu: 385/65 R22,5, Donanım: ABS, Platform:
- 2 pairs of external foldable lashing rings (LC 5,000 daN)
- 24 pairs of cutouts in the platform’s outer frame for attaching tensioning straps (LC 2,000 daN)
Landing Gear:
- JOST mechanical landing legs with 2-speed gearbox for 24t lifting capacity (50t test load)
Axles and Tyres:
- BPW axles, air suspended, with disc brakes (430 mm), with raise/lower function
- Tyres: 385/65 R 22.5
Braking System:
- WABCO braking system according to EU regulations with EBS-E (2S2M)
Paintwork:
- Premium, long-lasting corrosion protection of the standard shot-blasted welded frame guaranteed by a 2-component (2K) zinc-rich primer
- High-quality 2-component (2K) topcoat in single-tone MB 7350 Novagrau
- Rear section metallized and painted in RAL 9010 (pure white)
- Metallic paint not possible
Steel Construction:
- Steel construction made of high-strength fine-grain steels
- Steel grades:
- S355J2+N/S355MC (yield strength 355MPa)
- S690QL/S700MC (yield strength 690MPa)
Electrical System:
- Electrical system in accordance with EU regulations
- Lighting 24 Volt
- ASPÖCK-NORDIK (ASS3)
- ASPÖCK-UNIBOX at the front terminal strip with sockets 24N, 24S & 15-pin
- Wiring according to ISO norms:
- 24N ISO-1185
- 24S ISO-3731
- 15-pin ISO-12098
Accessories included:
- Yellow-red air couplings on the galvanized front terminal strip
- 4 wheel chocks with holder
- 2" king pin
- A galvanized steel front wall approx. 1,600 mm high. EN12642-XL
- White reflective tape according to EU regulations on the sides and red on the trailer’s rear
- European reflective plates (red-yellow) at the rear of the trailer
- Platform with approx. 30 mm thick hardwood floor, fitted in omega profiles
- 10 pairs of stake pockets for 100 x 50 mm slot-in stakes in the platform’s outer frame
- 3 pairs of transverse stake pocket strips mounted on the platform for 100 x 50 mm slot-in stakes
- Storage tray for 1,000 mm slot-in stakes at the rear in the central beam
- 1 spare wheel carrier under the platform on the right side (direction of travel)
- One mudflap at the rear of the trailer
- Manual and documentation on USB stick
- One bracket for a rotating beacon at the rear of the trailer
- On the gooseneck and rear apron, brackets on both sides for warning signs including socket
- 6 pairs of WADER container locks in the platform for 1x 20ft container, 2x 20ft containers, or 1x 40ft container, flush with the rear
- 80 km/h speed limit stickers at the rear and on both sides
- Four warning signs extendable by approx. 400 mm, each approx. 423 x 423 mm, with LED position light
Gusdpfjiu Etkox Afvja
- Load gauge for axle load determination including load chart
- HRM Metallization (High Resistance Metallisation) of the outer frame
- Complete steel structure shot-blasted, then the defined visible surfaces metalized and hot-finished with ZINACOR 850 (zinc 85% - aluminium 15%)
Küçük ilan
Dortmund
2.568 km
Platform
FaymonvilleMAX Trailer 3-Achs-Mega-Tele-Plateau-nachlaufgel.
Ara
Durumu: yeni, boş ağırlık: 8.300 kg, azami yük ağırlığı: 36.700 kg, toplam ağırlık: 45.000 kg, dingil konfigürasyonu: 3 dingil, yükleme alanı uzunluğu: 13.600 mm, yükleme alanı genişliği: 2.540 mm, yükleme alanı yüksekliği: 1.080 mm, süspansiyon: hava, lastik boyutu: 385/65 R 22.5, renk: gri, Donanım: ABS, hidrolik arka platform, Loading Area:
Loading area, extendable design with pneumatically operated locking mechanism
Cut-outs in the outer frame of the loading area for securing straps to be hooked in
Landing Gear:
JOST landing gear (mechanical) with 2-speed gearbox for 24t lifting capacity
Axles and Tyres:
BPW axles, air-suspended, with disc brakes (430 mm), equipped with raise/lower function
Trailing steering axle with electro-magnetic reversing lock, activated via reverse gear or manually
Axle tool kit
Tyres: 385/65 R 22.5
Brake System:
WABCO brake system compliant with EU regulations, with EBS-E
Paintwork:
Superior and durable corrosion protection for the standard shot-blasted welded frame, guaranteed by a two-component (2K) zinc-rich primer
High-quality two-component top coat, single-tone in MB 7350 Novagrau
tail section metallized and painted in RAL 9010
Metallic paint not possible
Steel Construction:
Steel construction made from high-strength fine-grained steels
Steel grades:
S355J2+N / S355MC
S690QL / S700MC
Electrical System:
Electrical system according to EU regulations
24 Volt ASPÖCK-NORDIK lighting
ASPÖCK-UNIBOX at the front connection strip with 24N, 24S & 15-pin sockets
Connections according to ISO
Accessories Included:
Front galvanized connection strip with yellow-red air couplings
Galvanized steel front bulkhead approx. 1,600 mm high, EN12642-XL
4 wheel chocks with brackets
White reflective tape on the sides, on the extension, and rear red tape according to EU regulations
European reflector plates at the rear of the trailer
Approx. 30 mm thick hardwood floor, enclosed in omega profiles
10 pairs of stake pockets for 100 x 50 mm insert stakes in the outer frame
Gusdpfsikyh Hex Afvoa
1 spare wheel carrier beneath the loading area, right side (in driving direction)
Manual and operating instructions
Bracket for rotating beacon at the rear of the trailer
On the gooseneck and rear plate, left and right: bracket for warning signs including socket outlets
Central chassis with painted sand coating as anti-slip protection
6 pairs of WADER container pockets in the loading area: for 1x 20ft container, 2x 20ft containers, or for 1x 40ft container in the extension, an additional locking point is provided for a 45ft container
4 pairs of crosswise stake pocket strips mounted in the loading area, for insert stakes 100 x 50 mm
One galvanized crosswise bracket underneath the loading area, 2,390 x 720 x 400 mm
Access ladder mounted on the right (in driving direction)
Lifting axle on the front axle with TEBS E control, depending on the current axle load and current loading status
Load gauge for determining axle loads, including load chart
HRM metallization of the outer frame: Complete steel construction blasted, then defined visible areas metallized with ZINACOR 850 hot finish
Küçük ilan
Dortmund
2.568 km
Platform yarı römork
FaymonvilleMAX Trailer-3-Achs-Mega-Tele-Plateau-nachlaufgel.
Ara
Durumu: yeni, azami yük ağırlığı: 36.020 kg, toplam ağırlık: 45.000 kg, dingil konfigürasyonu: 3 dingil, yükleme alanı uzunluğu: 13.600 mm, yükleme alanı genişliği: 2.540 mm, süspansiyon: hava, lastik boyutu: 435/50 R 19.5, renk: gri, Donanım: ABS, Cargo Area:
- Extendable cargo area design with pneumatically actuated locking
- 2 pairs of lashing rings (LC 5,000 daN)
- 1 pair of lashing rings (LC 10,000 daN)
- 6 pairs of fold-out lashing rings (LC 5,000 daN)
- 2 pairs of fold-out lashing rings (LC 10,000 daN)
- Cut-outs in the external frame of the cargo area for securing belts
Guedpfxji Dwlwj Afvoa
Axles and Tyres:
- BPW axles, air-suspended, with disc brakes (377 mm), height adjustment function (raise/lower)
- Self-steering axles with electromagnetic reversing lock, activated via reverse gear or manually
- Axle tools included
- Tyres: 435/50 R 19.5
Brake System:
- Brake system compliant with EU regulations, with EBS-E (2S2M)
Paintwork:
- First-class, long-lasting corrosion protection for the standard shot-blasted welded frame, ensured by a two-component zinc dust primer (2K)
- High-quality single-tone two-component topcoat (2K) in Novagrau
- Rear section metallized and painted in RAL 9010 (Pure White)
- Metallic paint not possible
Landing Gear:
- JOST landing gears (mechanical) with 2-speed gearbox for 24t lifting capacity (50t test load)
Steel Construction:
- Steel construction from high-tensile fine-grain steels
- Steel grades:
- S355J2+N/S355MC (yield strength 355 MPa)
- S690QL/S700MC (yield strength 690 MPa)
Electrical System:
- Electrical system compliant with EU regulations, 24 V ASPÖCK-NORDICK (ASS3) lighting
- ASPÖCK-UNIBOX at the front connection panel with 24N, 24S and 15-pin sockets
- Connections according to ISO:
- 24N ISO-1185
- 24S ISO-3731
- 15-pin ISO-12098
Accessories Included:
- Yellow-red air couplings on the galvanized front connection panel
- 2 wheel chocks with brackets
- 2" king pin
- Galvanized steel front wall approx. 1,600 mm high
- Yellow reflector tape according to EU regulations on the sides, extension, and rear of the trailer
- European reflective plates (red-yellow) at the rear of the trailer
- Cargo floor made of approx. 38 mm thick hardwood
- 10 pairs of stake pockets for 100 x 50 mm plug-in stakes integrated in the external frame of the cargo area
- 1 spare wheel holder under the cargo area on the right in driving direction
- Manual and documentation on USB stick
- 1 mud flap at the rear of the trailer
- 1 bracket for a beacon at the rear of the trailer
- At the goose neck and on each side of the rear panel, 1 bracket for warning signs incl. socket
- 1 INOX toolbox, crosswise under the cargo area (1,000 x 400 x 2,500 mm)
- 6 pairs of WADER container locks in the cargo area for 1 x 20ft container, 2 x 20ft containers or 1 x 40ft container; an additional locking position in the extension for one 45ft container
- 3 pairs of transverse stake pocket rails installed across the cargo area for 100 x 50 mm plug-in stakes
- 60 km/h speed sticker at the rear
- 2 reversing lights mounted on the rear panel
- Four warning signs, extendable by approx. 400 mm (approx. 423 x 423 mm), with position light
- Mounting bracket for beacon on the warning signs
- HRM metalization (High Resistance Metallisation) of the external frame
- Complete steel structure shot-blasted; then, the defined visible surfaces are metal-coated with ZINACOR 850 (zinc 85% - aluminum 15%) by thermal spraying
Küçük ilan
Dortmund
2.568 km
Platform
FaymonvilleMAX Trailer 3-Achs-Tele-Plateau-zwangsg.
Ara
Durumu: yeni, boş ağırlık: 9.300 kg, azami yük ağırlığı: 38.700 kg, toplam ağırlık: 48.000 kg, dingil konfigürasyonu: 3 dingil, yükleme alanı uzunluğu: 13.600 mm, yükleme alanı genişliği: 2.540 mm, yükleme alanı yüksekliği: 1.200 mm, süspansiyon: hava, lastik boyutu: 385/65 R 22,5, renk: gri-siyah, Donanım: ABS, Loading Platform:
• Loading platform in extendable design with pneumatically operated locking mechanism
• Loading platform with approx. 30 mm thick wooden floor
• 7 pairs of outward-folding lashing rings (LC 5,000 daN)
• 3 pairs of outward-folding lashing rings (LC 10,000 daN)
• Cut-outs in the outer frame of the loading platform for attaching tension straps (LC 2,000 daN)
Axles and Tyres:
• BPW axles and suspension, all axles hydro-mechanically forced steered
• Equipped with disc brakes
• Technical axle load: 10,000 kg
• Air suspension with raise/lower valve
• Axle tools
• Tyres: 385/65 R 22.5
• TPMS (Tyre Pressure Monitoring System) according to ECE R 141
Brake System:
• WABCO brake system compliant with EU regulations, with EBS-E (2S2M)
Electrical System:
• Electrical system according to EU regulations, lighting 24 Volt ASPÖCK-NORDIK (ASS3)
• ASPÖCK-UNIBOX on the front connection bar with sockets 24N, 24S & 15-pin
• Connections according to ISO standards
• 24N ISO-1185
Gusdpeiu Etrefx Afvea
• 24S ISO-3731
• 15-pin ISO-12098
Accessories Included:
• Remote-controlled steering from front and rear via cable remote with push-button operation, including single-track monitoring of axles
• 4 wheel chocks with holders mounted on the front wall
• 2" kingpin
• One galvanized steel front wall approx. 1,600 mm high
• Yellow-red air couplings mounted on the galvanized front connection bar
• White reflective tape according to EU regulations on the sides, at extension and at the rear of the trailer in red
• European reflective plates (red-yellow) on the rear of the trailer
• One mudflap at the rear of the trailer
• Manual and description
• Mounting bracket for a beacon at the rear of the trailer
• Loading platform with approx. 30 mm thick wooden floor enclosed in omega profiles
• 10 pairs of stake pockets for plug-in stanchions 100 x 50 mm in the outer frame of the loading platform
• 1 spare wheel holder under the right side of the loading platform in the direction of travel
• Electro-hydraulic unit
• On the gooseneck and rear apron left and right, each with a bracket for warning boards including socket
• Painted sand layer for anti-slip protection on the main beam
• 6 pairs of WADER container locks on the loading platform, for 1x20ft, 2x 20ft, or 1x 40ft container; in the extension, an additional locking position is provided for a 45ft container
• 4 pairs of crosswise mounted stake pocket bars on the loading platform for plug-in stanchions 100 x 50 mm
• Access ladder mounted on the right in the direction of travel
• One HDPE toolbox approx. 1,200 x 500 x 480 mm in front under the loading platform on the left in the direction of travel
• BEKAMAX central lubrication system (Pico) with removable pump guard
• Lift axle on the front axle controlled by TEBS E depending on current axle load and loading condition
• Wireless remote control for the rear steering in addition to the cable remote, with indicator lights on the receiver for single-track monitoring
• Four extendable warning plates approx. 400 mm extension, size approx. 423 x 423 mm with position light
• Bracket for beacon on the warning plates
• 80 km/h speed stickers on the rear and both sides
• Load pressure gauge to determine axle loads, including load diagram
• HRM metallization (High Resistance Metallisation) of the outer frame
• Complete steel construction shot-blasted, then the defined visible surfaces metallized with ZINACOR 850 (zinc 85% - aluminium 15%) hot-finished
Küçük ilan
Dortmund
2.568 km
Alçak yükleyici yarı römork
FaymonvilleMAX Trailer 3-Achs-Tele-Semi-nachlaufg.
Ara
Durumu: yeni, azami yük ağırlığı: 38.800 kg, toplam ağırlık: 49.500 kg, dingil konfigürasyonu: 3 dingil, yükleme alanı uzunluğu: 9.300 mm, yükleme alanı genişliği: 2.540 mm, yükleme alanı yüksekliği: 860 mm, süspansiyon: hava, lastik boyutu: 235/75 R 17,5 3PMSF, renk: gri, Donanım: ABS, Gooseneck:
- Gooseneck with front corners chamfered at 45° and rear bevel approximately 750 mm x 10°
- 3 pairs of lashing rings (LC 5,000 daN)
- 30 mm thick hardwood flooring
Extendable Loading Platform:
- Extendable loading platform with rear bevel approximately 1,000 mm x 8°
- 6 pairs of outward-folding lashing rings (LC 5,000 daN)
- 3 pairs of outward-folding lashing rings (LC 10,000 daN)
- 1 pair of horizontal lashing rings at the front of the loading platform (LC 10,000 daN)
- Cutouts in the outer frame of the loading platform for securing straps (LC 2,000 daN)
- Approx. 48 mm thick hardwood flooring, over-axle areas with checker plate
Axles and Tyres:
- BPW axles and suspension, 2 rigid axles, 1 self-tracking axle
- Technical axle load: 12,000 kg
- Electromagnetic reversing lock, activated via reverse gear or manually
- Air suspension with raise/lower valve
- Axle tools
- 235/75 R 17.5 3PMSF
Gujdpfx Ajuqlmnefvea
Brake System:
- WABCO braking system complying with EU regulations, with EBS-E (2S2M)
Landing Legs:
- JOST mechanical landing legs with 2-speed gearbox, 24 t lifting capacity (50 t test load)
Accessories Included:
- One spare wheel with holder in front of the front wall
- 2" kingpin
- Galvanised steel front wall, approx. 400 mm high
- Yellow-red air couplings on the galvanised front connection strip
- 4 wheel chocks with holders on the front wall
- Bracket for beacon at rear of trailer
- Recess at rear of gooseneck for ALU entry ramps
- Galvanised folding supports under the loading platform's rear bevel
- Cover plates to bridge gap between ramps and loading platform
- White reflective tape according to EU regulations on sides, extendable section, and rear in red
- Electro-hydraulic unit at the rear, under the loading platform
- Brackets for warning signs on both left/right of gooseneck and ramps, with socket
- Ramp control valves fitted on right-hand side of trailer
- Mudflap at the trailer rear
- Manual and documentation on USB stick
- ALU side boards and rear wall on gooseneck approx. 2,440 x 400 mm
- Rear galvanised plug-in stanchions, removable (superstructure length approx. 2,560 mm)
- Four approx. 400 mm extendable warning signs, approx. 423 x 423 mm, each with a position light
- 3 pairs of WADER container locks in the loading platform for 20ft, 30ft or 40ft container
- 6 pairs of stake pockets 100x50 mm in outer frame of loading platform
- Galvanised extendable width extensions, approx. 230 mm per side
- 20 x 20 mm square climbing strips every 200 mm on the outer frame of the loading platform bevel
- Sanded, painted anti-slip layer on checker plates over kingpin and loading platform
- Holder for beacon on warning signs
- European reflector boards (red-yellow) at the rear
- 80 km/h speed limit stickers on rear and both sides
- Load manometer for determining axle loads including load chart
- HRM Metallisation (High Resistance Metallisation) of outer frame
- Complete steel structure shot-blasted, then defined visible surfaces metallised with ZINACOR 850 (Zinc 85% - Aluminium 15%) hot-finished
Güven mührü
TruckScout24 tarafından sertifikalandırılmış bayiler

Küçük ilan
Dortmund
2.568 km
Alçak yükleyici yarı römork
FaymonvilleMAX Trailer 4-Achs-Mega-Tele-Semi-niedri
Ara
Durumu: yeni, boş ağırlık: 10.600 kg, azami yük ağırlığı: 39.400 kg, toplam ağırlık: 50.960 kg, dingil konfigürasyonu: 3 aks, yükleme alanı uzunluğu: 9.300 mm, yükleme alanı genişliği: 2.540 mm, yükleme alanı yüksekliği: 760 mm, süspansiyon: hava, lastik boyutu: 205/65 R17.5, renk: gri, işletme ağırlığı: 10.600 kg, Donanım: ABS, Swan-neck:
- Swan-neck with 30 mm thick hardwood flooring
- Swan-neck at the rear in straight design
- 3 pairs of lashing rings (LC 5,000 daN)
Extendable loading platform:
- Loading platform in extendable version
- 5 pairs of fold-out lashing rings
- 3 pairs of fold-out lashing rings
- 1 pair of horizontal lashing rings at the front of the loading platform
- Cut-outs in the outer frame of the loading platform for attaching tension belts
- Hardwood flooring approx. 48 mm thick, checker plate covering above the axles
Landing legs:
- JOST mechanical landing legs with 2-speed gearbox for 24 t lifting capacity (50 t test load)
Axles and tyres:
- BPW axles, two fixed and two steering axles
- Air suspension, drum brakes, with lift/lower function
- The steering axles can be locked electro-magnetically via reverse gear or manually
- Axle tools
- Tyres: 205/65 R17.5
Brake system:
- Brake system according to EU regulations with EBS-E (4S3M)
Steel construction:
- Steel structure made of high-strength fine-grain steels
- Steel grades:
- S355J2+N/S355MC (yield strength 355 MPa)
Godpfet Ag Uwox Afvjua
- S690QL/S700MC (yield strength 690 MPa)
Electrical system:
- Electrical system according to EU regulations, 24 volt lighting, ASPÖCK-NORDIK (ASS3)
- ASPÖCK-UNIBOX at the front connection strip, with 24N, 24S & 15-pin sockets
- Connections according to ISO:
- 24N ISO-1185
- 24S ISO-3731
- 15-pin ISO-12098
Paintwork:
- First-class and durable corrosion protection of the standard shot-blasted welded frame guaranteed by a 2-component (2K) zinc dust primer
- High-quality 2-component (2K) top coat, single colour in Nova grey
- Rear section metallized and painted in RAL 9010 (pure white)
Included accessories:
- One spare wheel with holder located in front of the bulkhead
- 2" king pin
- Galvanized steel front wall approx. 400 mm high
- Yellow-red air couplings on the front galvanized connection strip
- 4 wheel chocks with holder at the bulkhead
- Galvanized folding supports under the sloped part of the loading platform
- Holder for rotating beacon at the rear of the trailer
- Galvanized, extendable width extensions approx. 230 mm per side
- White reflective tape according to EU regulations on sides, at extension section, and red at rear
- On swan-neck and rear panel: one mount each for warning panels including socket (left and right)
- European reflective warning boards (red-yellow) at the rear of the trailer
- TPMS tyre pressure monitoring system in accordance with ECE R 141
- On the swan-neck: removable ALU side panels and tailboard approx. 2,440 x 400 mm
- The rear, galvanized stanchions are removable (length of superstructure approx. 2,560 mm)
- 7 pairs of WADER container locks
- 1x 20ft container on the loading platform; 1x 40ft container on the loading platform; 1x 40ft container over the swan-neck; 2x 20ft containers
- 7 pairs of stanchion pockets for 100 x 50 mm stanchions in the outer frame of the loading platform
- Lift axle at the front axle, controlled by TEBS E in relation to current axle load and loading status
- Sliding hook-in rail for ALU loading ramps at the rear of the vehicle
- Sanded, anti-slip coating painted onto checker plate on swan-neck and loading platform
- Four warning panels extendable by approx. 400 mm each, approx. 423 x 423 mm, with a position lamp
- Mount for rotating beacon on warning panels
- Speed stickers 80 km/h at the rear and on both sides
- Load gauge to determine axle loads, including load chart
Küçük ilan
Dortmund
2.568 km
Alçak yükleyici yarı römork
FaymonvilleMAX Trailer 3-Achs-Semi-nachlaufgelenkt
Ara
Durumu: yeni, boş ağırlık: 7.900 kg, azami yük ağırlığı: 41.600 kg, toplam ağırlık: 49.500 kg, dingil konfigürasyonu: 3 dingil, yükleme alanı uzunluğu: 8.600 mm, yükleme alanı genişliği: 2.540 mm, yükleme alanı yüksekliği: 860 mm, süspansiyon: hava, lastik boyutu: 235/75 R 17,5, renk: gri, işletme ağırlığı: 7.900 kg, Donanım: ABS, Gooseneck:
- Gooseneck with rear bevel approx. 750 mm x 10°
- 3 pairs of lashing rings (LC 5,000 daN)
- 30 mm thick hardwood flooring
Loading Area:
- Loading area with rear bevel approx. 1,000 mm x 8°
- Recess in the bevel and extending into the loading area for accommodating the excavator dipper stick, approx. 2,900 x 750 x 210/290 mm
- Cut-outs in the outer frame of the loading area for attaching tensioning straps
- Approx. 48 mm thick hardwood flooring, checker plate covering above the axles
Landing Gear:
Gusdpounrapefx Afvea
- JOST landing legs (mechanical) with 2-speed gearbox, lifting capacity 24 t (test load 50 t)
Axles and Tyres:
- BPW axles and suspension, 2 fixed axles, 1 self-steering axle
- Technical axle load: 12,000 kg
- Electromagnetic reversing lock, activated via reverse gear and manually
- Air suspension with lift and lower valve
- TPMS tyre pressure monitoring system as per ECE R 141
- Tyres: 235/75 R 17.5
Paintwork:
- Complete steel structure automatically blasted with shot blasting machine after welding
- Second blasting with corundum for optimal coating adhesion
- Final painting with 2 coats of 2K topcoat, single colour RAL MB 7350 Novagrau
- Rims painted silver
- Rear section metallised and painted RAL 9010 (Pure White)
- Cavities sealed with special wax
Electrical System:
- Electrical system according to EU regulations, lighting 24 Volt ASPÖCK-NORDIK (ASS3)
- ASPÖCK-UNIBOX on the front connection bar with sockets: 2 x 7-pin & 1 x 15-pin
Accessories Included:
- Numerous lashing positions
- 2" king pin
- One galvanised steel front wall, approx. 400 mm high
- Yellow-red air couplings on the galvanised front connection bar
- 4 wheel chocks with holder on the front wall
- Holder at the rear of the gooseneck for ALU loading ramps
- Galvanised folding support legs under the rear bevel of the loading area
- Holder for rotating beacon at the rear of the trailer
- Galvanised, extendable widenings approx. 230 mm per side
- White reflective tape to EU regulations on the sides, red at the rear
- Holders for warning panels with socket at the gooseneck and rear crossmember, left and right
- Removable ALU sideboards and rear board on the gooseneck, approx. 2,440 x 400 mm
- Removable rear galvanised stakes
- 2 pairs of WADER container pockets in the loading area for a 20ft container
- 6 pairs of post pockets (for 100 x 50 mm stakes) in the outer frame of the loading area
- Movable mounting bar for ALU loading ramps at the rear of the vehicle
- 20 x 20 mm square climbing strips every 200 mm on the outer frame of the loading area bevel
- Anti-slip sand coating applied to checker plates on gooseneck and loading area
- Four extendable warning signs, approx. 400 mm extension, size 423 x 423 mm, each with a position light
- Bracket for rotating beacon on the warning signs
- 80 km/h speed stickers at rear and on both sides
- European reflector panels (red/yellow) at rear of trailer
- Manual and operating instructions on USB stick
- HRM metallisation (High Resistance Metallisation) of the outer frame
- Complete steel structure shot-blasted, then all defined visible surfaces hot-finish metallised with ZINACOR 850 (zinc 85% - alu 15%)
Küçük ilan
Essen
2.594 km
Çalışma platformlu yarı römork
FAYMONVILLEMAX Trailer MAX200 Telesattel Bordwände
Ara
Durumu: kullanılmış, azami yük ağırlığı: 36.755 kg, toplam ağırlık: 45.000 kg, dingil konfigürasyonu: 3 dingil, ilk tescil: 06/2025, bir sonraki muayene (TÜV): 06/2026, toplam genişlik: 2.540 mm, Donanım: ABS, You can find our complete vehicle inventory, including immediately and short-term available vehicles, on our website.
Excerpt from the equipment. Full equipment list available on request.
Cargo Area:
* Extendable cargo area with pneumatically operated locking mechanism
* Cargo area floor approx. 30 mm thick, made of wood, enclosed in omega profiles
* 10 pairs of foldable lashing rings (LC 2,500 daN)
* 7 pairs of outward-folding lashing rings (LC 5,000 daN)
* 3 pairs of outward-folding lashing rings (LC 10,000 daN)
* Cargo area width approx. 2,480 mm
Landing Legs:
* JOST landing legs (mechanical) with 2-speed gearbox, approx. 24 t lifting capacity (approx. 50 t test load)
Axles:
* BPW axles, air-suspended, with disc brakes (approx. 430 mm), with lift/lower function (ET 120)
* Self-steering axle with electromagnetic reverse lock, activated via reverse gear or manually
* Axle tools
Tyres:
* Tyres 385/65 R 22.5
Braking System:
* Braking system in accordance with EU regulations, with EBS-E (2S2M), without connecting lines to the tractor unit
Paintwork:
* First-class, durable corrosion protection for the standard shot-blasted welded frame, guaranteed by a 2-component (2K) zinc dust primer
* High-grade 2-component (2K) top coat, single color, RAL 3002 Carmine Red
* Rear section metallized and painted in RAL 9010 (Pure White)
Including the following additional equipment:
* Front galvanized connection strip with yellow-red air couplings
* 2” king pin
* Yellow reflective tape in accordance with EU regulations on sides, extension, and rear of the trailer
* European reflective markers (red-yellow) at the rear of the trailer
* Cargo area floor approx. 30 mm thick, made of wood, enclosed in omega profiles
* Storage for approx. 1,000 mm long plug-in stakes on rear central beam
* 1 spare wheel holder under the cargo area, left in driving direction
* Bracket for rotating beacon at the rear of the trailer
* Brackets on the gooseneck and rear plate, left and right, for warning signs including sockets
* Load gauge to determine axle loads, including load chart
* Galvanized steel front wall (EN12642-XL), approx. 1,600 mm high
Gedpfeya Shlsx Afveua
* Foldable aluminum sideboards with rear double doors (anodized), on the cargo area sides, approx. 600 mm high, with KINNEGRIP folding stakes
* Holder for aluminum sideboards under the cargo area in front of the axles
* Holder for KINNEGRIP stakes under the cargo area behind the axles
* 10 pairs of stake pockets for plug-in stakes approx. 100 x 50 mm in the exterior cargo area frame
* Collison protection on both sides of the rear traverse
* 6 pairs of WADER container pockets in the cargo area, for 1x 20' container, 2x 20' containers, or 1x 40' container
* One INOX toolbox, approx. 600 x 350 x 600 mm, mounted under the cargo area on the left in the direction of travel
* 4 pairs of stake pocket rails mounted longitudinally on the cargo area, for plug-in stakes 100 x 50 mm
* Lift axle on the front axle, controlled by TEBS E depending on current axle load and loading status
* Holder for rotating beacon on the warning signs
* Acoustic reverse warning signal
* 2 LED reversing lights mounted on the rear panel
* HRM metallization (High Resistance Metallization) of the outer frame
Sizin için aramayı kolaylaştırıyoruz: "faymonville max yarı römorklar"
Yeni teklifleri hemen ve ücretsiz olarak e-posta ile alırsınız.
Arama görevini istediğiniz zaman kolayca sonlandırabilirsiniz.
Kullanılmış Faymonville Max Yarı Römorklar (206)
Şimdi 120.000’dan fazla ikinci el araçla TruckScout24 genelinde arama yapın.En popüler kategorileri inceleyin:
- Ackermann-Fruehauf Ps Yarı Römorklar
- Faymonville Alçak Yükleyici
- Faymonville Diğer
- Faymonville Ilo Yarı Römorklar
- Faymonville Platform
- Faymonville Platform Açık
- Faymonville Prefamax
- Faymonville Standart Yapı
- Faymonville Stbz Yarı Römorklar
